Step1: Product

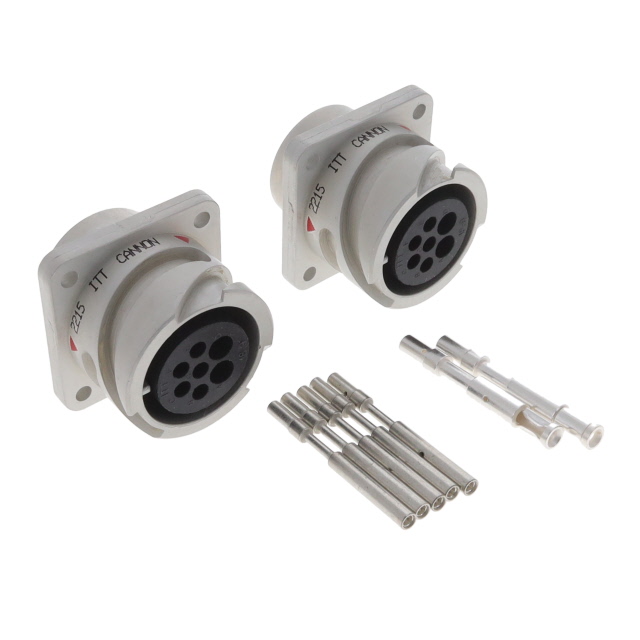

ITT Cannon, LLC VG95234A-18-9SN-J
Images are for reference only
Manufacturer
Manufacturer No
VG95234A-18-9SN-J
Packaging
Bag
Description
CA-B 7C 5#15 2#25 SKT BOX RECP
Detailed Description
7 Position Circular Connector Receptacle, Female Sockets Crimp
Datasheet
Payment
Delivery
Mfr
ITT Cannon, LLC
Color
Gray
Series
VG 95234, CA-B
Features
-
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Termination
Crimp
Applications
Military
Shell Finish
Tin Zinc
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Reverse Bayonet Lock
Shell Material
Aluminum Alloy
Voltage Rating
50VAC, 75VDC
Insert Material
Polychloroprene
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Flange
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
VG952
Number of Positions
7
Shell Size - Insert
18-9
Current Rating (Amps)
22A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Gray |
| Series | VG 95234, CA-B |
| Features | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Military |
| Shell Finish | Tin Zinc |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Reverse Bayonet Lock |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 50VAC, 75VDC |
| Insert Material | Polychloroprene |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | VG952 |
| Number of Positions | 7 |
| Shell Size - Insert | 18-9 |
| Current Rating (Amps) | 22A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
