Step1: Product

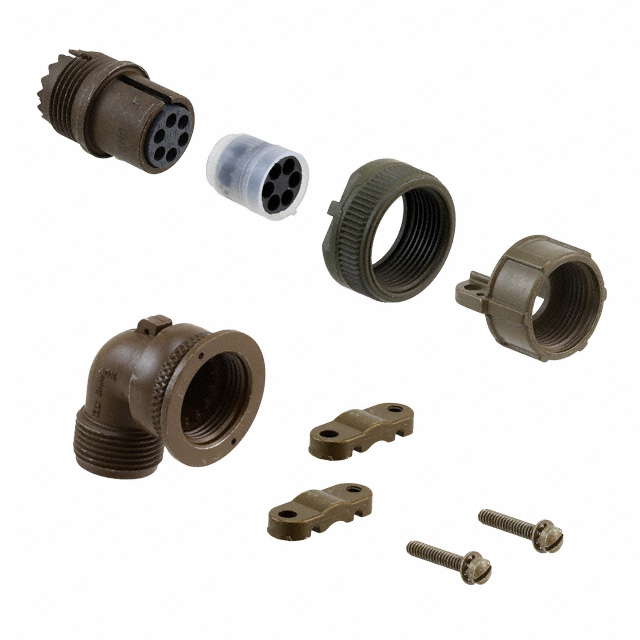

ITT Cannon, LLC MS3108E14S-6S
Images are for reference only
Manufacturer
Manufacturer No
MS3108E14S-6S
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG FMALE 6P SOLDER CUP
Detailed Description
6 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
ITT Cannon, LLC
Color
Olive Drab
Grade
Military
Series
MS
Features
Cable Clamp, Coupling Nut
Packaging
Bulk
Shielding
-
Orientation
N (Normal)
Termination
Solder Cup
Shell Finish
Olive Drab Cadmium
Mounting Type
Free Hanging (In-Line), Right Angle
Qualification
MIL-DTL-5015
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
200VAC, 250VDC
Shell Size, MIL
-
Mounting Feature
-
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
MS3108E14
Number of Positions
6
Shell Size - Insert
14S-6
Current Rating (Amps)
22A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Olive Drab |
| Grade | Military |
| Series | MS |
| Features | Cable Clamp, Coupling Nut |
| Packaging | Bulk |
| Shielding | - |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Shell Finish | Olive Drab Cadmium |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Qualification | MIL-DTL-5015 |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 200VAC, 250VDC |
| Shell Size, MIL | - |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | MS3108E14 |
| Number of Positions | 6 |
| Shell Size - Insert | 14S-6 |
| Current Rating (Amps) | 22A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
