Step1: Product

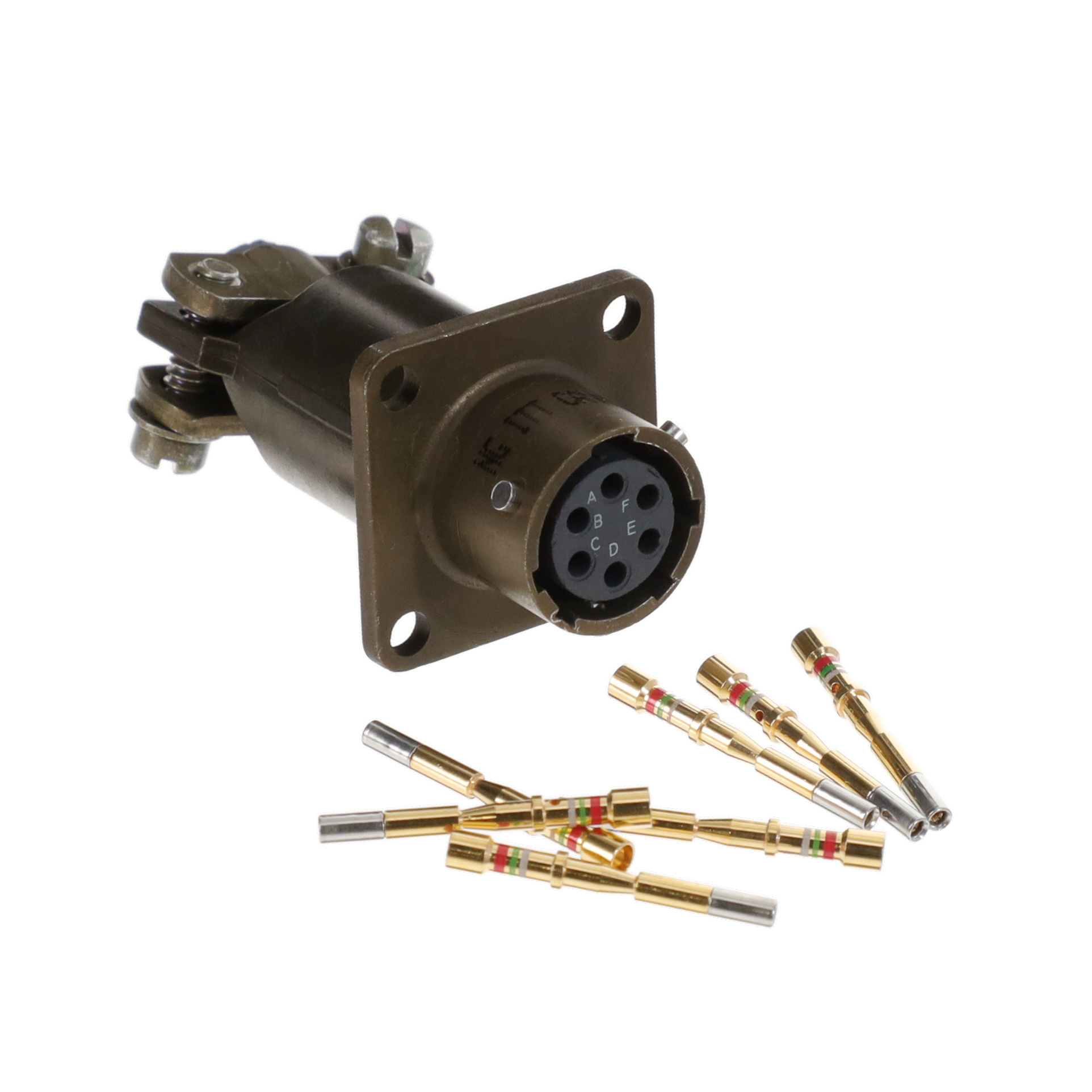

ITT Cannon, LLC KPSE00F10-6S
Images are for reference only
Manufacturer
Manufacturer No
KPSE00F10-6S
Packaging
Bag
Description
26482 - STYLE SERIES I & MIL BAT
Detailed Description
6 Position Circular Connector Receptacle, Female Sockets Crimp
Datasheet
Payment
Delivery
Mfr
ITT Cannon, LLC
Color
Olive Drab
Series
KPSE
Features
Strain Relief
Packaging
Bag
Shielding
-
Orientation
N (Normal)
Termination
Crimp
Shell Finish
Olive Drab Cadmium
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum Alloy
Voltage Rating
600VAC, 850VDC
Shell Size, MIL
-
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
6
Shell Size - Insert
10-6
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Olive Drab |
| Series | KPSE |
| Features | Strain Relief |
| Packaging | Bag |
| Shielding | - |
| Orientation | N (Normal) |
| Termination | Crimp |
| Shell Finish | Olive Drab Cadmium |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 600VAC, 850VDC |
| Shell Size, MIL | - |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 6 |
| Shell Size - Insert | 10-6 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
