Step1: Product

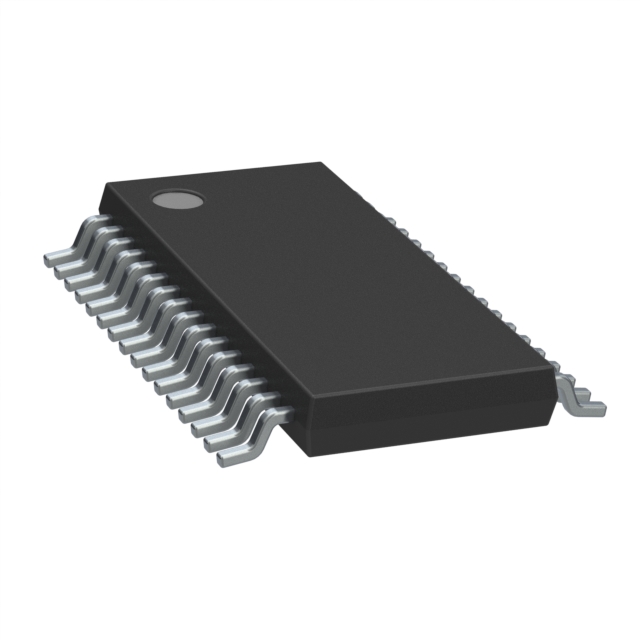

Infineon Technologies TLE9140EQWXUMA1
Images are for reference only
Manufacturer
Manufacturer No
TLE9140EQWXUMA1
Quantity
69
Availability
In Stock
Package
32-TSSOP (0.154", 3.90mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
BLDC_DRIVER_IC
Detailed Description
Multiphase Motor Driver Power MOSFET SPI PG-TSDSO-32-1
Datasheet
Payment
Delivery
Grade
Automotive
Series
MOTIX™
Function
Driver - Fully Integrated, Control and Power Stage
Interface
SPI
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Power MOSFET
Applications
-
Manufacturer
Infineon Technologies
Mounting Type
Surface Mount
Package / Case
32-TSSOP (0.154", 3.90mm Width) Exposed Pad
Voltage - Load
-
Step Resolution
-
Current - Output
-
Voltage - Supply
8V ~ 75V
Base Product Number
TLE9140
Motor Type - AC, DC
Brushless DC (BLDC)
Motor Type - Stepper
Multiphase
Output Configuration
Half Bridge (3)
Operating Temperature
-40°C ~ 175°C (TJ)
Supplier Device Package
PG-TSDSO-32-1
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Series | MOTIX™ |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Power MOSFET |
| Applications | - |
| Manufacturer | Infineon Technologies |
| Mounting Type | Surface Mount |
| Package / Case | 32-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Voltage - Load | - |
| Step Resolution | - |
| Current - Output | - |
| Voltage - Supply | 8V ~ 75V |
| Base Product Number | TLE9140 |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Output Configuration | Half Bridge (3) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | PG-TSDSO-32-1 |
