Step1: Product

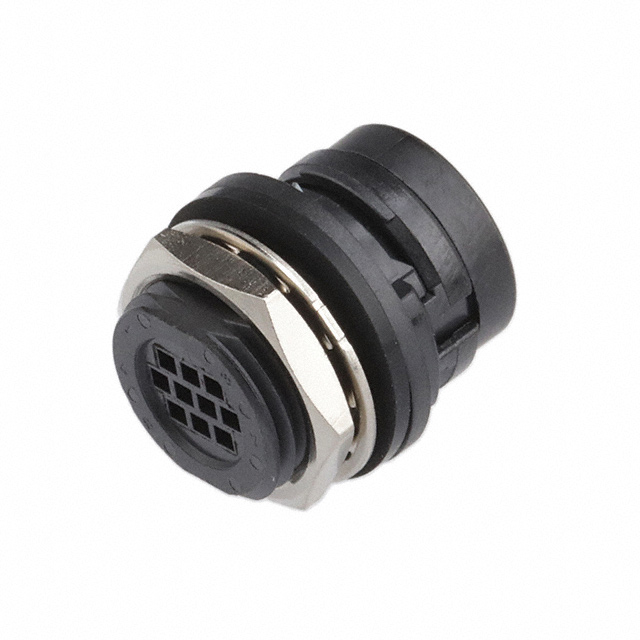

Hirose Electric Co Ltd HR30-7R-10PC(31)
Images are for reference only
Manufacturer
Manufacturer No
HR30-7R-10PC(31)
Quantity
7
Availability
In Stock
Packaging
Tray
Description
CONN RCPT HSG MALE 10POS PNL MT
Detailed Description
10 Position Circular Connector Receptacle Housing Panel Mount
Datasheet
Payment
Delivery
Note
Contacts Sold Separately
Type
For Male Pins
Series
HR30
Features
-
Includes
4 pcs - 1 Housing, 1 Gasket, 1 Lockwasher, 1 Nut
Packaging
Tray
Shielding
Unshielded
Orientation
Keyed
Contact Size
-
Contact Type
Crimp
Manufacturer
Hirose Electric Co Ltd
Shell Finish
-
Contact Shape
Square
Housing Color
Black
Mounting Type
Panel Mount
Connector Type
Receptacle Housing
Fastening Type
Push-Pull
Shell Material
Polyphenylene Sulfide (PPS)
Insert Material
Polyphenylene Sulfide (PPS)
Shell Size, MIL
-
Mounting Feature
Bulkhead - Rear Side Nut
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
HR30
Number of Positions
10
Shell Size - Insert
7
Operating Temperature
-25°C ~ 85°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Male Pins |
| Series | HR30 |
| Features | - |
| Includes | 4 pcs - 1 Housing, 1 Gasket, 1 Lockwasher, 1 Nut |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | Keyed |
| Contact Size | - |
| Contact Type | Crimp |
| Manufacturer | Hirose Electric Co Ltd |
| Shell Finish | - |
| Contact Shape | Square |
| Housing Color | Black |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle Housing |
| Fastening Type | Push-Pull |
| Shell Material | Polyphenylene Sulfide (PPS) |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Shell Size, MIL | - |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | HR30 |
| Number of Positions | 10 |
| Shell Size - Insert | 7 |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
