Step1: Product

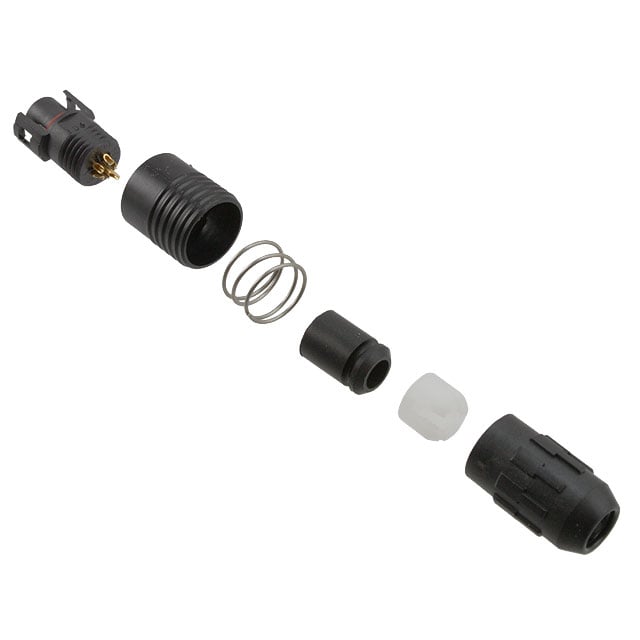

Hirose Electric Co Ltd HR30-6PA-6P(71)
Images are for reference only
Manufacturer
Manufacturer No
HR30-6PA-6P(71)
Quantity
35
Availability
In Stock
Packaging
Tray
Description
CONN PLUG MALE 6P GOLD SLDR CUP
Detailed Description
6 (Power) Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
Hirose Electric Co Ltd
Color
Black
Series
HR30
Features
Backshell, Strain Relief
Packaging
Tray
Shielding
-
Orientation
Keyed
Termination
Solder Cup
Applications
Industrial, Marine, Medical
Shell Finish
-
Cable Opening
0.138" ~ 0.169" (3.50mm ~ 4.30mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Push-Pull
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
100VAC, 140VDC
Insert Material
Polyphenylene Sulfide (PPS)
Shell Size, MIL
-
Contact Material
Brass
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
HR30
Number of Positions
6 (Power)
Shell Size - Insert
6
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | HR30 |
| Features | Backshell, Strain Relief |
| Packaging | Tray |
| Shielding | - |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial, Marine, Medical |
| Shell Finish | - |
| Cable Opening | 0.138" ~ 0.169" (3.50mm ~ 4.30mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Push-Pull |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 100VAC, 140VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | HR30 |
| Number of Positions | 6 (Power) |
| Shell Size - Insert | 6 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
