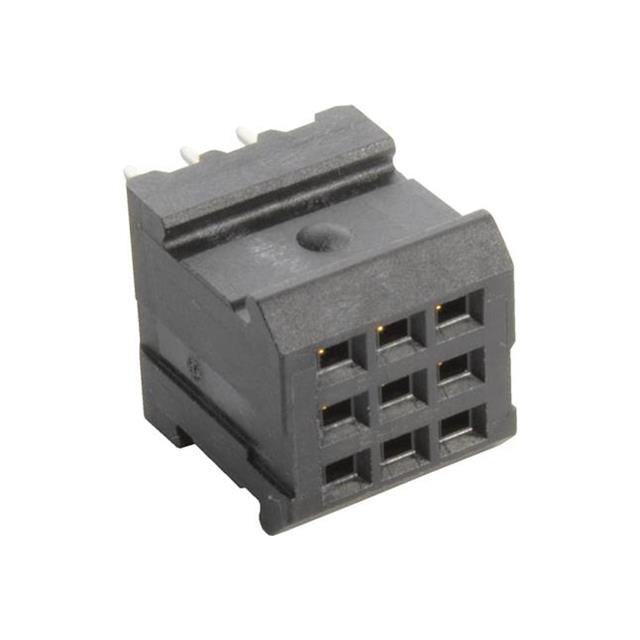

HARTING 02529091101
Images are for reference only
Manufacturer
Manufacturer No
02529091101
Packaging
Bulk
Description
9 POSITION 2A STRAIGHT FEMALE
Detailed Description
9 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
Payment
Delivery
Mfr
HARTING
Style
Board to Board or Cable
Series
har-modular®
Features
-
Packaging
Bulk
Termination
Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
3
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.455" (11.56mm)
Ingress Protection
-
Base Product Number
0252909
Insulation Material
Polyamide (PA), Nylon
Number of Positions
9
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.177" (4.50mm)
Current Rating (Amps)
2A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | HARTING |
| Style | Board to Board or Cable |
| Series | har-modular® |
| Features | - |
| Packaging | Bulk |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 3 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.455" (11.56mm) |
| Ingress Protection | - |
| Base Product Number | 0252909 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 9 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.177" (4.50mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
