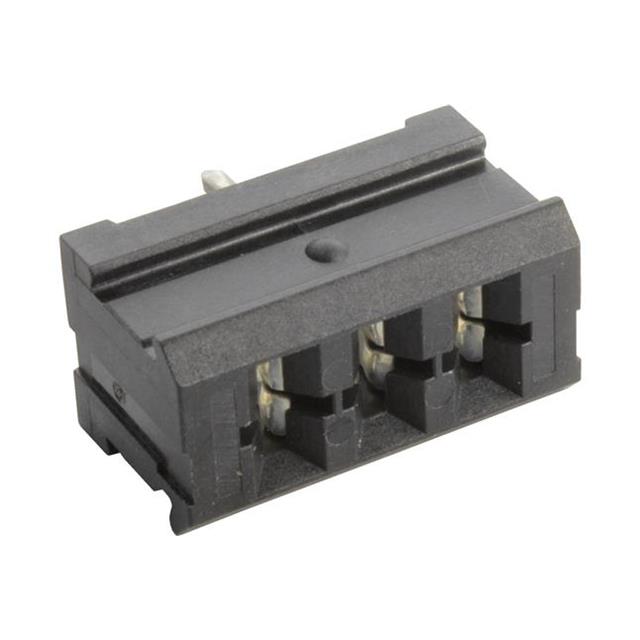

HARTING 02529031301
Images are for reference only
Manufacturer
Manufacturer No
02529031301
Packaging
Bulk
Description
3 POSITION 15A STRAIGHT FEMALE
Detailed Description
3 Position Receptacle Connector 0.200" (5.08mm) Through Hole Silver
Datasheet
Payment
Delivery
Mfr
HARTING
Style
Board to Board or Cable
Series
har-modular®
Features
-
Packaging
Bulk
Termination
Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.200" (5.08mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.455" (11.56mm)
Ingress Protection
-
Base Product Number
0252903
Insulation Material
Polyamide (PA), Nylon
Number of Positions
3
Row Spacing - Mating
-
Contact Finish - Post
-
Contact Length - Post
0.161" (4.09mm)
Current Rating (Amps)
15A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Contact Finish - Mating
Silver
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
