EPC EPC2619ENGRT

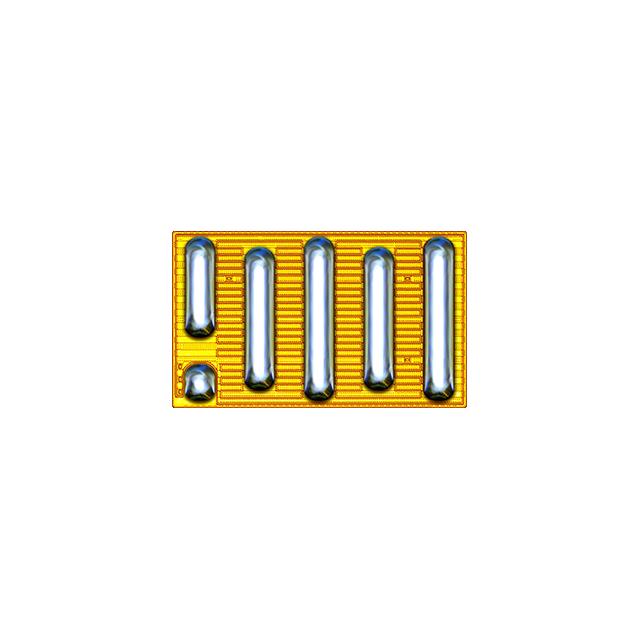

Images are for reference only

Manufacturer

EPC

Manufacturer No

EPC2619ENGRT

Package

Die

Packaging

Tape & Reel (TR); Cut Tape (CT)

Description

TRANS GAN 80V .0033OHM 6LGA

Detailed Description

N-Channel 100 V 29A (Ta) Surface Mount Die

Datasheet

EPC2619ENGRT

Payment

Delivery

Mfr

EPC

Grade

-

Series

eGaN®

FET Type

N-Channel

Packaging

Tape & Reel (TR); Cut Tape (CT)

Vgs (Max)

+6V, -4V

Technology

GaNFET (Gallium Nitride)

FET Feature

-

Mounting Type

Surface Mount

Qualification

-

Package / Case

Die

Vgs(th) (Max) @ Id

2.5V @ 5.5mA

Operating Temperature

-40°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

3.3mOhm @ 16A, 5V

Power Dissipation (Max)

-

Supplier Device Package

Die

Gate Charge (Qg) (Max) @ Vgs

8.3 nC @ 5 V

Drain to Source Voltage (Vdss)

100 V

Input Capacitance (Ciss) (Max) @ Vds

1180 pF @ 50 V

Drive Voltage (Max Rds On, Min Rds On)

5V

Current - Continuous Drain (Id) @ 25°C

29A (Ta)

Attribute	Value
Mfr	EPC
Grade	-
Series	eGaN®
FET Type	N-Channel
Packaging	Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)	+6V, -4V
Technology	GaNFET (Gallium Nitride)
FET Feature	-
Mounting Type	Surface Mount
Qualification	-
Package / Case	Die
Vgs(th) (Max) @ Id	2.5V @ 5.5mA
Operating Temperature	-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs	3.3mOhm @ 16A, 5V
Power Dissipation (Max)	-
Supplier Device Package	Die
Gate Charge (Qg) (Max) @ Vgs	8.3 nC @ 5 V
Drain to Source Voltage (Vdss)	100 V
Input Capacitance (Ciss) (Max) @ Vds	1180 pF @ 50 V
Drive Voltage (Max Rds On, Min Rds On)	5V
Current - Continuous Drain (Id) @ 25°C	29A (Ta)
