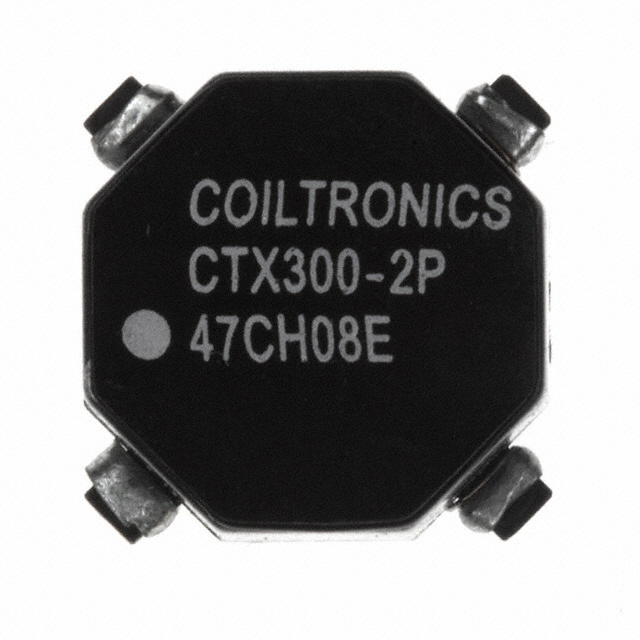

Eaton - Electronics Division CTX300-2P-R
Images are for reference only
Manufacturer
Manufacturer No
CTX300-2P-R
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 300.42UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 1.2 mH Inductance - Connected in Series 300.42 µH Inductance - Connected in Parallel 1.176Ohm Max DC Resistance (DCR) - Parallel 420 mA Nonstandard
Datasheet
Payment
Delivery
Height
0.235" (5.97mm)
Series
Econo-Pac™
Ratings
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±20%
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.450" L x 0.450" W (11.43mm x 11.43mm)
Operating Temperature
-40°C ~ 85°C
Current Rating - Series
210 mA
Current Rating - Parallel
420 mA
DC Resistance (DCR) - Series
4.703Ohm Max
DC Resistance (DCR) - Parallel
1.176Ohm Max
Inductance - Connected In Series
1.2 mH
Inductance - Connected In Parallel
300.42 µH
| Attribute | Value |
|---|---|
| Height | 0.235" (5.97mm) |
| Series | Econo-Pac™ |
| Ratings | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Series | 210 mA |
| Current Rating - Parallel | 420 mA |
| DC Resistance (DCR) - Series | 4.703Ohm Max |
| DC Resistance (DCR) - Parallel | 1.176Ohm Max |
| Inductance - Connected In Series | 1.2 mH |
| Inductance - Connected In Parallel | 300.42 µH |
