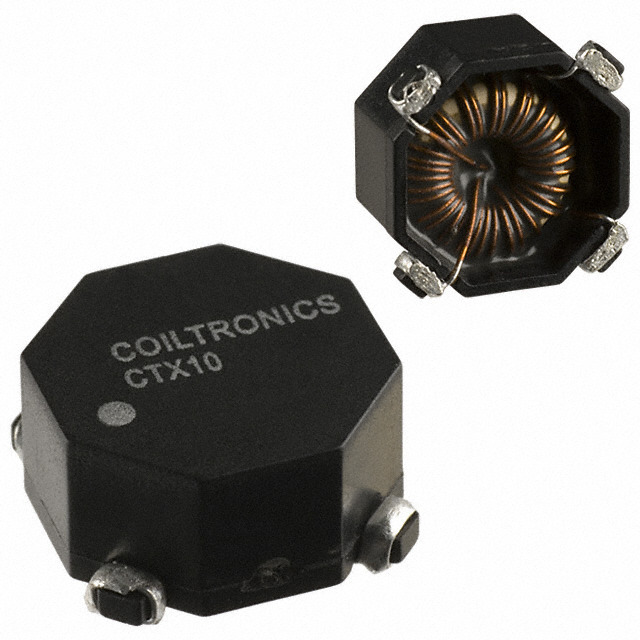

Eaton - Electronics Division CTX10-4A-R
Images are for reference only
Manufacturer
Manufacturer No
CTX10-4A-R
Quantity
5
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 10.53UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 42.11 µH Inductance - Connected in Series 10.53 µH Inductance - Connected in Parallel 20mOhm Max DC Resistance (DCR) - Parallel 4.67 A Nonstandard
Datasheet
Payment
Delivery
Height
0.250" (6.35mm)
Series
OCTA-PAC® PLUS
Ratings
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±25%
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.550" L x 0.550" W (13.97mm x 13.97mm)
Operating Temperature
-40°C ~ 85°C
Current Rating - Series
2.33 A
Current Rating - Parallel
4.67 A
Current Saturation - Series
2.05 A
DC Resistance (DCR) - Series
81mOhm Max
Current Saturation - Parallel
4.09 A
DC Resistance (DCR) - Parallel
20mOhm Max
Inductance - Connected In Series
42.11 µH
Inductance - Connected In Parallel
10.53 µH
| Attribute | Value |
|---|---|
| Height | 0.250" (6.35mm) |
| Series | OCTA-PAC® PLUS |
| Ratings | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±25% |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Series | 2.33 A |
| Current Rating - Parallel | 4.67 A |
| Current Saturation - Series | 2.05 A |
| DC Resistance (DCR) - Series | 81mOhm Max |
| Current Saturation - Parallel | 4.09 A |
| DC Resistance (DCR) - Parallel | 20mOhm Max |
| Inductance - Connected In Series | 42.11 µH |
| Inductance - Connected In Parallel | 10.53 µH |
