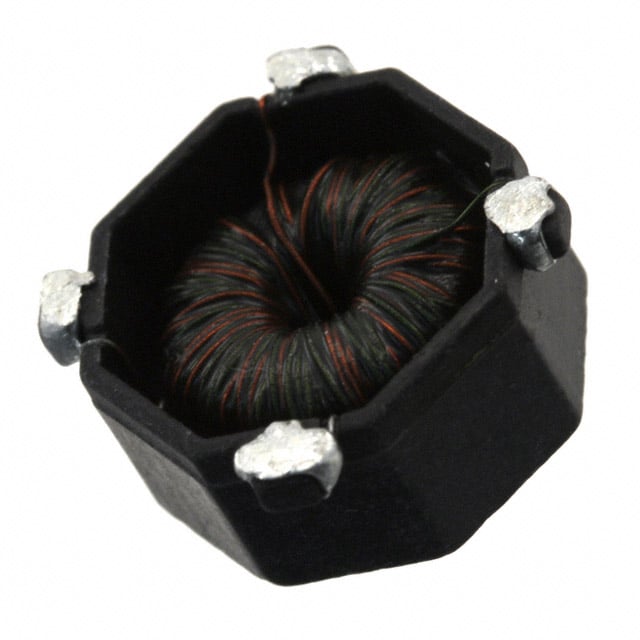

Eaton - Electronics Division CTX200-4-R
Images are for reference only
Manufacturer
Manufacturer No
CTX200-4-R
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 200.7UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 802.82 µH Inductance - Connected in Series 200.7 µH Inductance - Connected in Parallel 545mOhm Max DC Resistance (DCR) - Parallel 640 mA Nonstandard
Datasheet
Payment
Delivery
Height
0.250" (6.35mm)
Series
OCTA-PAC®
Ratings
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±20%
Manufacturer
Eaton - Electronics Division
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.550" L x 0.550" W (13.97mm x 13.97mm)
Operating Temperature
-40°C ~ 85°C
Current Rating - Series
320 mA
Current Rating - Parallel
640 mA
DC Resistance (DCR) - Series
2.18Ohm Max
DC Resistance (DCR) - Parallel
545mOhm Max
Inductance - Connected In Series
802.82 µH
Inductance - Connected In Parallel
200.7 µH
| Attribute | Value |
|---|---|
| Height | 0.250" (6.35mm) |
| Series | OCTA-PAC® |
| Ratings | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Manufacturer | Eaton - Electronics Division |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Series | 320 mA |
| Current Rating - Parallel | 640 mA |
| DC Resistance (DCR) - Series | 2.18Ohm Max |
| DC Resistance (DCR) - Parallel | 545mOhm Max |
| Inductance - Connected In Series | 802.82 µH |
| Inductance - Connected In Parallel | 200.7 µH |
