Step1: Product

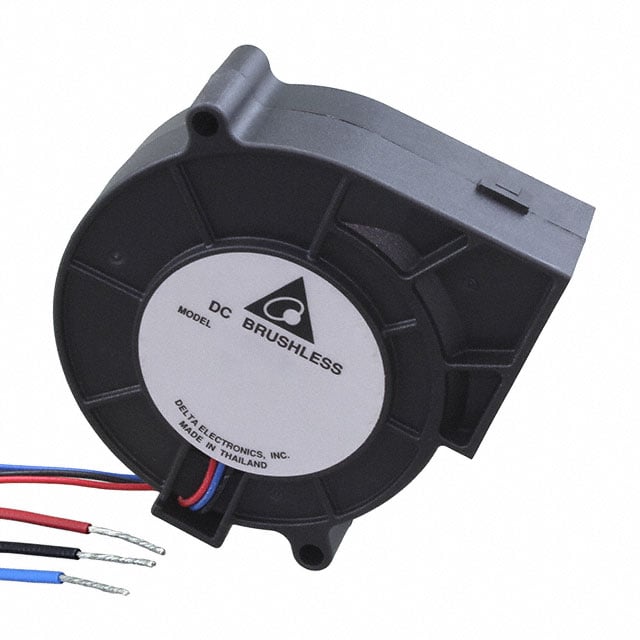

Delta Electronics BFB0712HHD77
Images are for reference only
Manufacturer
Manufacturer No
BFB0712HHD77
Packaging
Box
Description
FAN BLOWER 75.7X25MM 12VDC WIRE
Detailed Description
Fan Blower 12VDC Rectangular/Rounded - 75.7mm L x 80.6mm H Ball 14.7 CFM (0.412m³/min) 3 Wire Leads
Datasheet
Payment
Delivery
Mfr
Delta Electronics
RPM
5500 RPM
Noise
50.0dB(A)
Width
25.00mm
Series
BFB
Weight
0.188 lb (85.28 g)
Air Flow
14.7 CFM (0.412m³/min)
Fan Type
Blower
Features
Locked Rotor Protection, PWM Control
Packaging
Box
Termination
3 Wire Leads
Bearing Type
Ball
Power (Watts)
8.15 W
Voltage Range
9 ~ 16VDC
Approval Agency
-
Static Pressure
1.412 in H2O (351.7 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
-
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Rectangular/Rounded - 75.7mm L x 80.6mm H
Ingress Protection
IP55 - Dust Protected, Water Resistant
Base Product Number
BFB0712
Current Rating (Amps)
0.530A
Operating Temperature
-40 ~ 185°F (-40 ~ 85°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 5500 RPM |
| Noise | 50.0dB(A) |
| Width | 25.00mm |
| Series | BFB |
| Weight | 0.188 lb (85.28 g) |
| Air Flow | 14.7 CFM (0.412m³/min) |
| Fan Type | Blower |
| Features | Locked Rotor Protection, PWM Control |
| Packaging | Box |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 8.15 W |
| Voltage Range | 9 ~ 16VDC |
| Approval Agency | - |
| Static Pressure | 1.412 in H2O (351.7 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Rectangular/Rounded - 75.7mm L x 80.6mm H |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Base Product Number | BFB0712 |
| Current Rating (Amps) | 0.530A |
| Operating Temperature | -40 ~ 185°F (-40 ~ 85°C) |
