Step1: Product

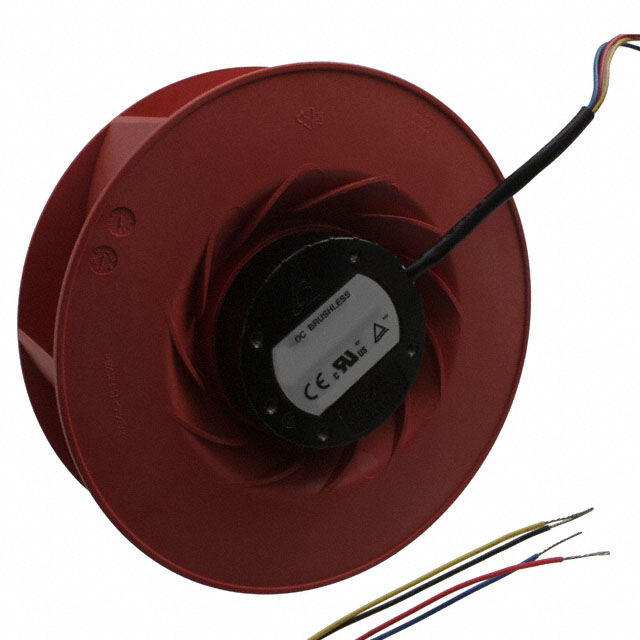

Delta Electronics TCA1748AT-EP
Images are for reference only
Manufacturer
Manufacturer No
TCA1748AT-EP
Packaging
Box
Description
FAN IMP MTRZD 175X69MM 48VDC
Detailed Description
Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 428.0 CFM (11.98m³/min) 4 Wire Leads
Datasheet
Payment
Delivery
Mfr
Delta Electronics
RPM
4000 RPM
Noise
70.8dB(A)
Width
69.00mm
Series
TCA
Weight
1.5 lbs (670.0 g)
Air Flow
428.0 CFM (11.98m³/min)
Fan Type
Motorized Impellers
Features
GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
76.8 W
Voltage Range
36 ~ 60VDC
Approval Agency
CE, cURus, TUV
Static Pressure
1.957 in H2O (487.5 Pa)
Voltage - Rated
48VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Aluminum
Size / Dimension
Round - 175mm Dia
Ingress Protection
IP56 - Dust Protected, Water Resistant
Current Rating (Amps)
1.60A
Operating Temperature
-13 ~ 158°F (-25 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 4000 RPM |
| Noise | 70.8dB(A) |
| Width | 69.00mm |
| Series | TCA |
| Weight | 1.5 lbs (670.0 g) |
| Air Flow | 428.0 CFM (11.98m³/min) |
| Fan Type | Motorized Impellers |
| Features | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 76.8 W |
| Voltage Range | 36 ~ 60VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 1.957 in H2O (487.5 Pa) |
| Voltage - Rated | 48VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension | Round - 175mm Dia |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Current Rating (Amps) | 1.60A |
| Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) |
