Step1: Product

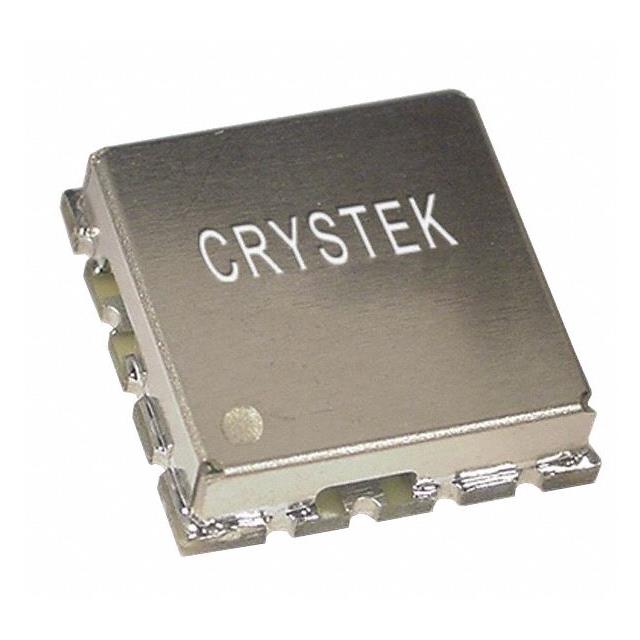

Crystek Corporation CVCO55CL-0600-0880
Images are for reference only
Manufacturer
Manufacturer No
CVCO55CL-0600-0880
Availability
In Stock
Package
16-QFN, Variant
Packaging
Strip
Description
VCO 740MHZ 0.5-4.5V 12.7X12.7MM
Detailed Description
740MHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator 0 ±3 dBm -10 2nd Harmonic Typ (dBc)
Datasheet
Payment
Delivery
Height
0.150" (3.81mm)
Series
CVCO55
Icc Max
20mA
Packaging
Strip
Power (dBm)
0 ±3
Manufacturer
Crystek Corporation
Package / Case
16-QFN, Variant
Frequency Range
600 ~ 880MHz
Pushing (MHz/V)
2
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Voltage - Supply
5V
Frequency - Center
740MHz
Tuning Voltage (VDC)
0.5 V ~ 4.5 V
Operating Temperature
-40°C ~ 85°C
2nd Harmonic, Typ (dBc)
-10
Phase Noise Typ (dBc/Hz)
-98
| Attribute | Value |
|---|---|
| Height | 0.150" (3.81mm) |
| Series | CVCO55 |
| Icc Max | 20mA |
| Packaging | Strip |
| Power (dBm) | 0 ±3 |
| Manufacturer | Crystek Corporation |
| Package / Case | 16-QFN, Variant |
| Frequency Range | 600 ~ 880MHz |
| Pushing (MHz/V) | 2 |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Voltage - Supply | 5V |
| Frequency - Center | 740MHz |
| Tuning Voltage (VDC) | 0.5 V ~ 4.5 V |
| Operating Temperature | -40°C ~ 85°C |
| 2nd Harmonic, Typ (dBc) | -10 |
| Phase Noise Typ (dBc/Hz) | -98 |
