Step1: Product

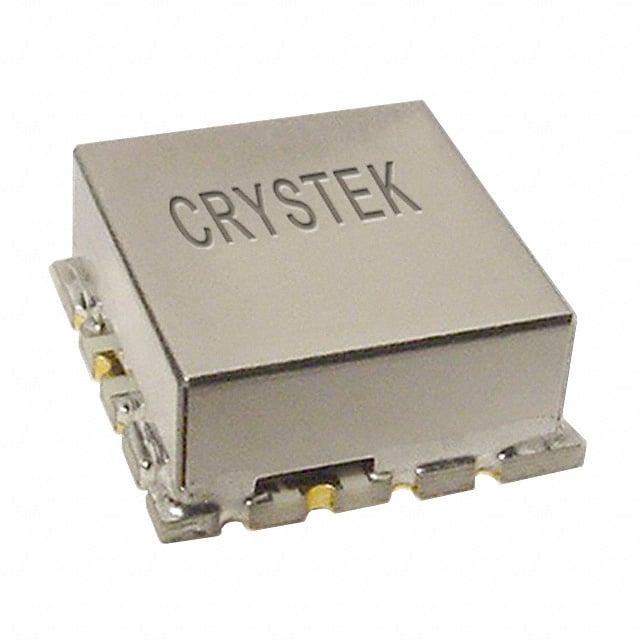

Crystek Corporation CVCO55CC-1750-1810
Images are for reference only
Manufacturer
Manufacturer No
CVCO55CC-1750-1810
Availability
In Stock
Package
16-QFN, Variant
Packaging
Strip
Description
VCO 1780MHZ 1-10V 12.7X12.7MM
Detailed Description
1780MHz Center Frequency 1 V ~ 10 V Voltage Controlled Oscillator 5 ±3 dBm -15 2nd Harmonic Typ (dBc)
Datasheet
Payment
Delivery
Height
0.220" (5.59mm)
Series
CVCO55
Icc Max
35mA
Packaging
Strip
Power (dBm)
5 ±3
Manufacturer
Crystek Corporation
Package / Case
16-QFN, Variant
Frequency Range
1750 ~ 1810MHz
Pushing (MHz/V)
1.5 (Typ)
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Voltage - Supply
8V
Frequency - Center
1780MHz
Tuning Voltage (VDC)
1 V ~ 10 V
Operating Temperature
-40°C ~ 85°C
2nd Harmonic, Typ (dBc)
-15
Phase Noise Typ (dBc/Hz)
-115
| Attribute | Value |
|---|---|
| Height | 0.220" (5.59mm) |
| Series | CVCO55 |
| Icc Max | 35mA |
| Packaging | Strip |
| Power (dBm) | 5 ±3 |
| Manufacturer | Crystek Corporation |
| Package / Case | 16-QFN, Variant |
| Frequency Range | 1750 ~ 1810MHz |
| Pushing (MHz/V) | 1.5 (Typ) |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Voltage - Supply | 8V |
| Frequency - Center | 1780MHz |
| Tuning Voltage (VDC) | 1 V ~ 10 V |
| Operating Temperature | -40°C ~ 85°C |
| 2nd Harmonic, Typ (dBc) | -15 |
| Phase Noise Typ (dBc/Hz) | -115 |
