Step1: Product

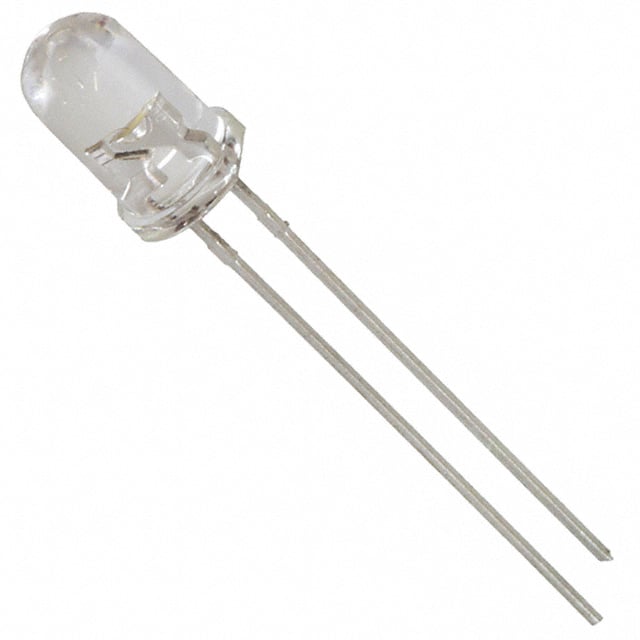

Cree LED C503C-WAS-CBBDB152
Images are for reference only
Manufacturer
Manufacturer No
C503C-WAS-CBBDB152
Availability
In Stock
Package
Radial
Packaging
Cut Tape (CT); Tape & Box (TB)
Description
LED COOL WHITE CLR 5MM ROUND T/H
Detailed Description
White, Cool 9000K LED Indication - Discrete 3.2V Radial
Datasheet
Payment
Delivery
Mfr
Cree LED
Color
White, Cool
Series
-
Features
-
Lens Size
5.00mm Dia
Packaging
Cut Tape (CT); Tape & Box (TB)
Lens Color
Colorless
Lens Style
Round with Domed Top
Height (Max)
13.80mm
Configuration
Standard
Mounting Type
Through Hole
Viewing Angle
15°
Current - Test
20mA
Package / Case
Radial
Size / Dimension
-
Lens Transparency
Clear
Wavelength - Peak
-
Base Product Number
C503C
Millicandela Rating
33125mcd
Wavelength - Dominant
9000K
Supplier Device Package
5mm Round
Voltage - Forward (Vf) (Typ)
3.2V
| Attribute | Value |
|---|---|
| Mfr | Cree LED |
| Color | White, Cool |
| Series | - |
| Features | - |
| Lens Size | 5.00mm Dia |
| Packaging | Cut Tape (CT); Tape & Box (TB) |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Height (Max) | 13.80mm |
| Configuration | Standard |
| Mounting Type | Through Hole |
| Viewing Angle | 15° |
| Current - Test | 20mA |
| Package / Case | Radial |
| Size / Dimension | - |
| Lens Transparency | Clear |
| Wavelength - Peak | - |
| Base Product Number | C503C |
| Millicandela Rating | 33125mcd |
| Wavelength - Dominant | 9000K |
| Supplier Device Package | 5mm Round |
| Voltage - Forward (Vf) (Typ) | 3.2V |
