Conxall/Switchcraft 15280-20PG-450

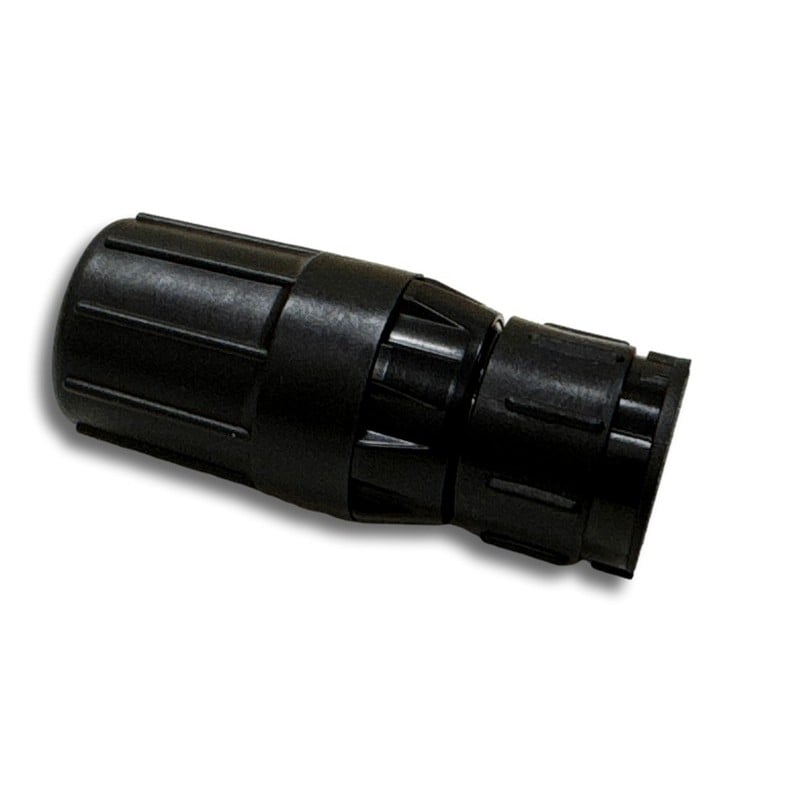

Images are for reference only
Manufacturer
Manufacturer No
15280-20PG-450
Packaging
Bulk
Description
MAXI-CON-X CABLE-TO-CABLE, 20 #2
Detailed Description
20 Position Circular Connector Receptacle, Male Pins Crimp
Datasheet
Payment
Delivery
Mfr
Conxall/Switchcraft
Color
Black
Grade
-
Series
Maxi-Con-X®
Features
Backshell
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Termination
Crimp
Applications
-
Shell Finish
-
Cable Opening
0.402" ~ 0.500" (10.20mm ~ 12.70mm)
Mounting Type
Free Hanging (In-Line)
Qualification
-
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Polyamide (PA), Nylon
Voltage Rating
600V
Insert Material
-
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
20
Shell Size - Insert
-
Current Rating (Amps)
7.5A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 HB
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Conxall/Switchcraft |
| Color | Black |
| Grade | - |
| Series | Maxi-Con-X® |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | - |
| Shell Finish | - |
| Cable Opening | 0.402" ~ 0.500" (10.20mm ~ 12.70mm) |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | - |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyamide (PA), Nylon |
| Voltage Rating | 600V |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 20 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 HB |
| Contact Finish Thickness - Mating | - |
