Step1: Product

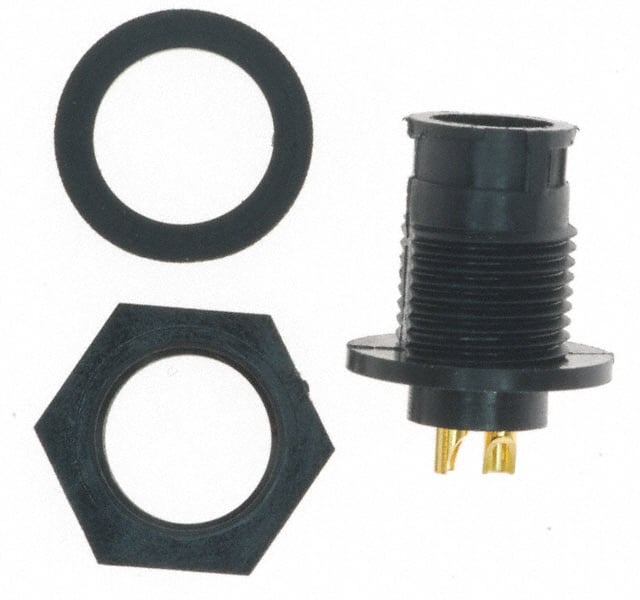

Conxall/Switchcraft 17282-2SG-300
Images are for reference only
Manufacturer
Manufacturer No
17282-2SG-300
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT FMALE 2P GOLD SLDR CUP
Detailed Description
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Conxall/Switchcraft
Color
Black
Series
Micro-Con-X®
Features
-
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Termination
Solder Cup
Applications
Data, Industrial, Instrumentation, Medical
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Thermoplastic
Voltage Rating
600VAC/DC
Insert Material
-
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
17282-2S
Number of Positions
2
Shell Size - Insert
-
Current Rating (Amps)
7.5A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 HB
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Conxall/Switchcraft |
| Color | Black |
| Series | Micro-Con-X® |
| Features | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Data, Industrial, Instrumentation, Medical |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic |
| Voltage Rating | 600VAC/DC |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | 17282-2S |
| Number of Positions | 2 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 HB |
| Contact Finish Thickness - Mating | - |
