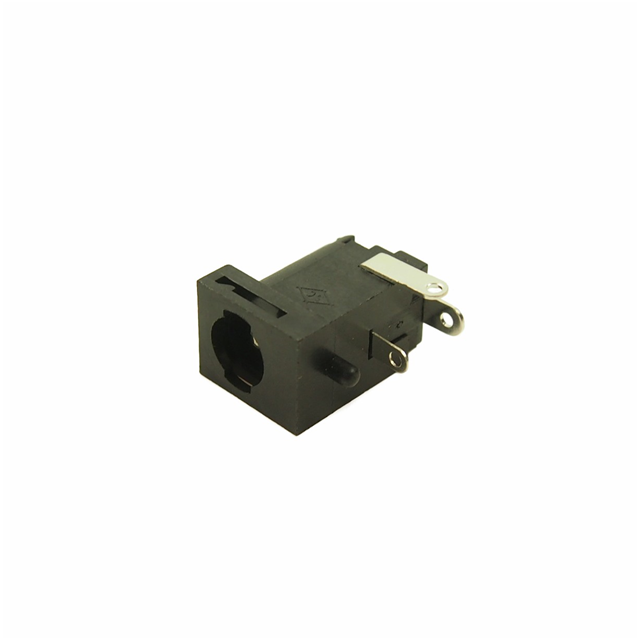

CLIFF Electronic Components Ltd FC681477
Images are for reference only
Manufacturer
Manufacturer No
FC681477
Availability
In Stock
Packaging
Bulk
Description
LOCKING DC SOCKET 2.5MM
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet
Payment
Delivery
Gender
Male
Series
-
Features
Board Guide, Cover
Includes
-
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Termination
Solder Eyelet(s)
Thread Size
-
Manufacturer
CLIFF Electronic Components Ltd
Body Material
-
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.230" (5.85mm OD)
Voltage - Rated
16VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Insulation Color
-
Mounting Feature
-
Ingress Protection
-
Internal Switch(s)
Single Switch, Normally Closed
Mating Length/Depth
-
Current Rating (Amps)
2 A
Operating Temperature
-
Contact Material - Plating
Silver
Material Flammability Rating
-
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | - |
| Features | Board Guide, Cover |
| Includes | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder Eyelet(s) |
| Thread Size | - |
| Manufacturer | CLIFF Electronic Components Ltd |
| Body Material | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.230" (5.85mm OD) |
| Voltage - Rated | 16VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Color | - |
| Mounting Feature | - |
| Ingress Protection | - |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mating Length/Depth | - |
| Current Rating (Amps) | 2 A |
| Operating Temperature | - |
| Contact Material - Plating | Silver |
| Material Flammability Rating | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
