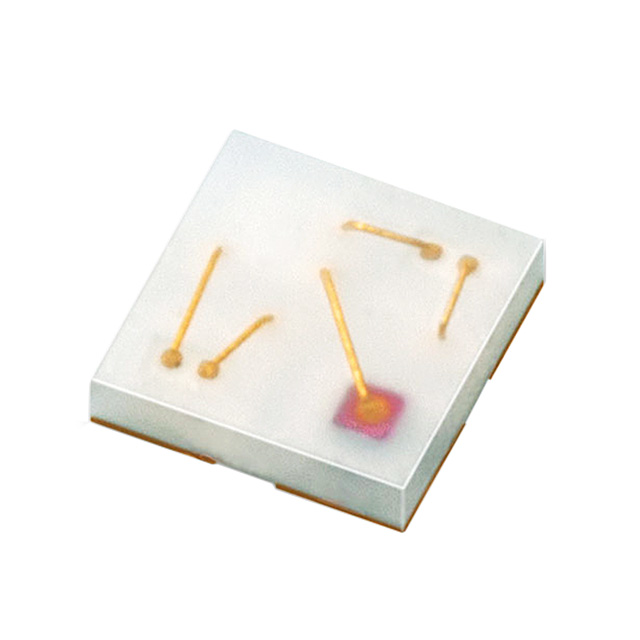

Citizen CL-505S-X-SD
Images are for reference only
Manufacturer
Manufacturer No
CL-505S-X-SD
Package
0404 (1010 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB SMD 1.0 X 1.0
Detailed Description
Red, Green, Blue (RGB) 615nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 1.85V Red, 2.7V Green, 2.75V Blue 0404 (1010 Metric)
Datasheet
Payment
Delivery
Mfr
Citizen
Color
Red, Green, Blue (RGB)
Series
CL-505S
Features
-
Lens Size
1.00mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
-
Lens Style
Square with Flat Top
Height (Max)
0.26mm
Configuration
Common Anode
Mounting Type
Surface Mount
Viewing Angle
-
Current - Test
5mA Red, 5mA Green, 5mA Blue
Package / Case
0404 (1010 Metric)
Size / Dimension
1.00mm L x 1.00mm W
Lens Transparency
-
Wavelength - Peak
-
Base Product Number
CL-505
Millicandela Rating
40mcd Red, 220mcd Green, 65mcd Blue
Wavelength - Dominant
615nm Red, 530nm Green, 470nm Blue
Supplier Device Package
-
Voltage - Forward (Vf) (Typ)
1.85V Red, 2.7V Green, 2.75V Blue
| Attribute | Value |
|---|---|
| Mfr | Citizen |
| Color | Red, Green, Blue (RGB) |
| Series | CL-505S |
| Features | - |
| Lens Size | 1.00mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | - |
| Lens Style | Square with Flat Top |
| Height (Max) | 0.26mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount |
| Viewing Angle | - |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Package / Case | 0404 (1010 Metric) |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Lens Transparency | - |
| Wavelength - Peak | - |
| Base Product Number | CL-505 |
| Millicandela Rating | 40mcd Red, 220mcd Green, 65mcd Blue |
| Wavelength - Dominant | 615nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | - |
| Voltage - Forward (Vf) (Typ) | 1.85V Red, 2.7V Green, 2.75V Blue |
