Step1: Product

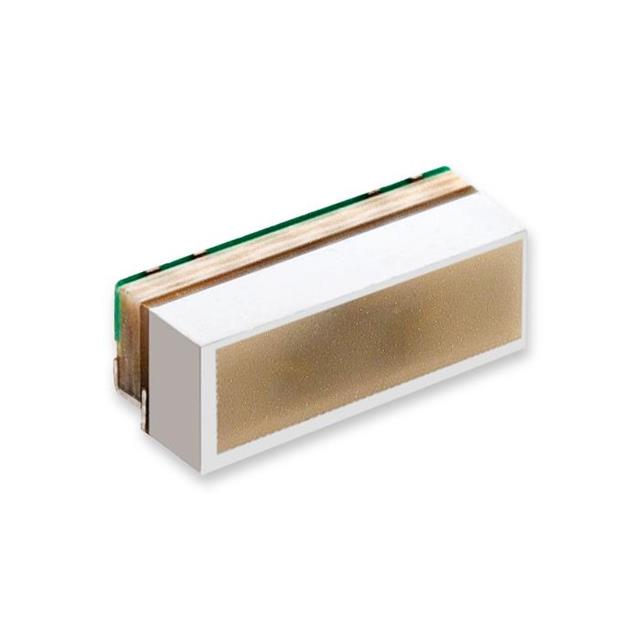

Citizen CL-421-C4-SD-TS
Images are for reference only
Manufacturer
Manufacturer No
CL-421-C4-SD-TS
Availability
In Stock
Package
4-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB SMD R/A
Detailed Description
Red, Green, Blue (RGB) 624nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.45V Green, 3.2V Blue 4-SMD, No Lead
Datasheet
Payment
Delivery
Mfr
Citizen
Color
Red, Green, Blue (RGB)
Series
CL-421
Features
-
Lens Size
2.60mm x 0.80mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
-
Lens Style
Rectangle with Flat Top
Height (Max)
1.00mm
Configuration
Common Anode
Mounting Type
Surface Mount, Right Angle
Viewing Angle
-
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
4-SMD, No Lead
Size / Dimension
2.80mm L x 1.35mm W
Lens Transparency
-
Wavelength - Peak
-
Base Product Number
CL-421
Millicandela Rating
700mcd Red, 1350mcd Green, 400mcd Blue
Wavelength - Dominant
624nm Red, 530nm Green, 470nm Blue
Supplier Device Package
-
Voltage - Forward (Vf) (Typ)
2.2V Red, 3.45V Green, 3.2V Blue
| Attribute | Value |
|---|---|
| Mfr | Citizen |
| Color | Red, Green, Blue (RGB) |
| Series | CL-421 |
| Features | - |
| Lens Size | 2.60mm x 0.80mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | - |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 1.00mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | - |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 2.80mm L x 1.35mm W |
| Lens Transparency | - |
| Wavelength - Peak | - |
| Base Product Number | CL-421 |
| Millicandela Rating | 700mcd Red, 1350mcd Green, 400mcd Blue |
| Wavelength - Dominant | 624nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | - |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.45V Green, 3.2V Blue |
