Step1: Product

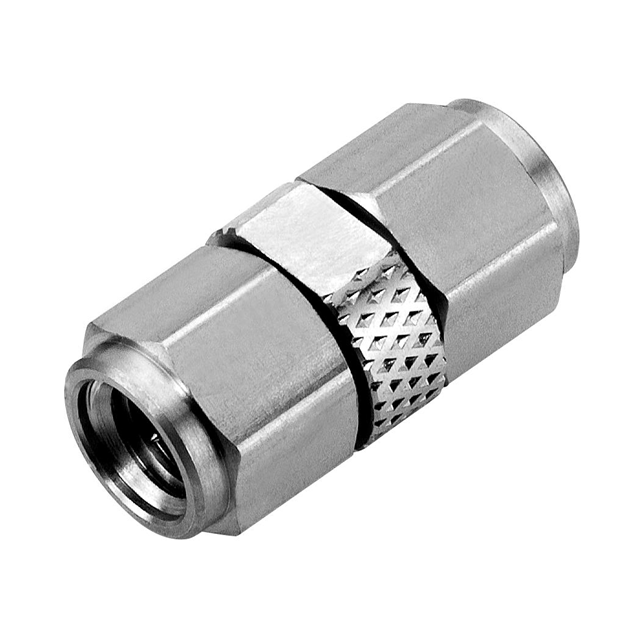

Cinch Connectivity Solutions Johnson 149-0901-801
Images are for reference only
Manufacturer
Manufacturer No
149-0901-801
Availability
In Stock
Packaging
Bag
Description
COAX ADAPT 1.0/2.3 TO 1.0/2.3
Detailed Description
Adapter Coaxial Connector 1.0mm Plug, Male Pin To 1.0mm Plug, Male Pin 50 Ohms
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions Johnson
Style
Straight
Series
1.0mm
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Adapter Type
Plug to Plug
Body Material
Beryllium Copper
Center Gender
Male to Male
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Adapter Series
1.0/2.3 to 1.0/2.3
Fastening Type
Threaded, Threaded
Insertion Loss
-
Conversion Type
Same Series
Frequency - Max
110 GHz
Mounting Feature
-
Ingress Protection
-
Base Product Number
149-0901
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
1.0mm Plug, Male Pin
Convert From (Adapter End)
1.0mm Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Style | Straight |
| Series | 1.0mm |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Adapter Type | Plug to Plug |
| Body Material | Beryllium Copper |
| Center Gender | Male to Male |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | 1.0/2.3 to 1.0/2.3 |
| Fastening Type | Threaded, Threaded |
| Insertion Loss | - |
| Conversion Type | Same Series |
| Frequency - Max | 110 GHz |
| Mounting Feature | - |
| Ingress Protection | - |
| Base Product Number | 149-0901 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | 1.0mm Plug, Male Pin |
| Convert From (Adapter End) | 1.0mm Plug, Male Pin |
