Step1: Product

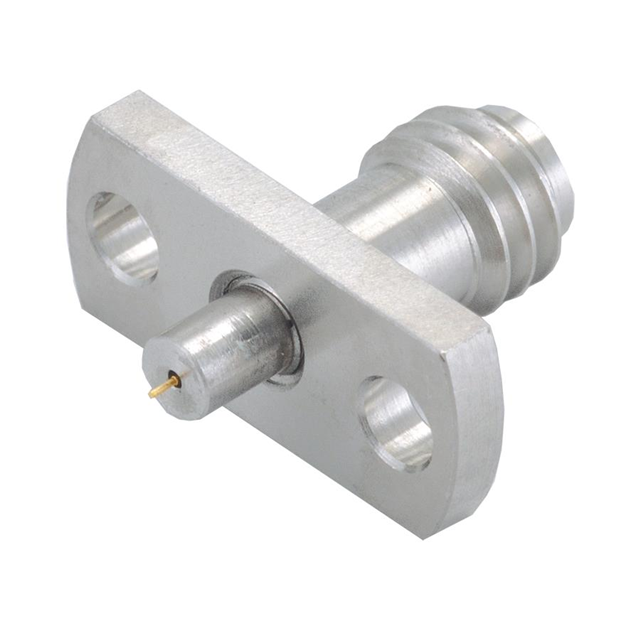

Cinch Connectivity Solutions Johnson 149-0701-601
Images are for reference only
Manufacturer
Manufacturer No
149-0701-601
Availability
In Stock
Packaging
Bag
Description
1.0MM FEMALE PANEL END LAUNCH -
Detailed Description
1.0mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions Johnson
Series
-
Features
Mounting Hardware
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
-
Cable Group
-
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.7dB
Voltage Rating
150 V
Connector Style
1.0mm
Frequency - Max
110 GHz
Number of Ports
1
Mounting Feature
Flange
Ingress Protection
-
Shield Termination
Screw
Base Product Number
149-0701
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Series | - |
| Features | Mounting Hardware |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | - |
| Cable Group | - |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.7dB |
| Voltage Rating | 150 V |
| Connector Style | 1.0mm |
| Frequency - Max | 110 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Shield Termination | Screw |
| Base Product Number | 149-0701 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
