Step1: Product

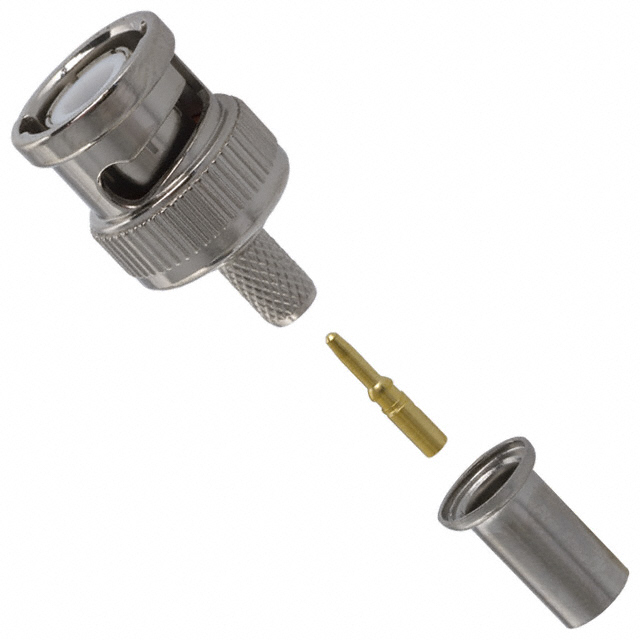

Cinch Connectivity Solutions AIM-Cambridge CPMC8813
Images are for reference only
Manufacturer
Manufacturer No
CPMC8813
Packaging
Bulk
Description
CONN BNC PLUG STR 50 OHM CRIMP
Detailed Description
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions AIM-Cambridge
Series
-
Features
-
Includes
3 pcs - 1 Connector, 1 Contact, 1 Sleeve
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Cable Group
RG-55, 142, 223, 400
Body Material
Zinc
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Bayonet Lock
Insertion Loss
-
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Crimp
Base Product Number
CPMC
Contact Termination
Crimp or Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions AIM-Cambridge |
| Series | - |
| Features | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Sleeve |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | RG-55, 142, 223, 400 |
| Body Material | Zinc |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Bayonet Lock |
| Insertion Loss | - |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Base Product Number | CPMC |
| Contact Termination | Crimp or Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
