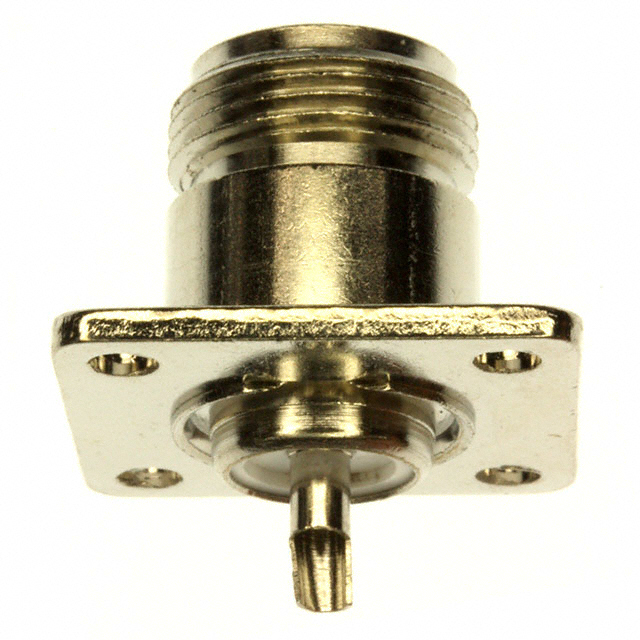

Cinch Connectivity Solutions AIM-Cambridge 26-8011
Images are for reference only
Manufacturer
Manufacturer No
26-8011
Availability
In Stock
Packaging
Bulk
Description
CONN N JACK STR 50 OHM SOLDER
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions AIM-Cambridge
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Cable Group
-
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
-
Voltage Rating
500 V
Connector Style
N Type
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Flange
Ingress Protection
-
Shield Termination
Solder
Base Product Number
-
Contact Termination
Solder Cup
Dielectric Material
Polyoxymethylene (POM) Acetal
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Nickel
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions AIM-Cambridge |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | - |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Voltage Rating | 500 V |
| Connector Style | N Type |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | - |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Nickel |
| Center Contact Material | Brass |
