Step1: Product

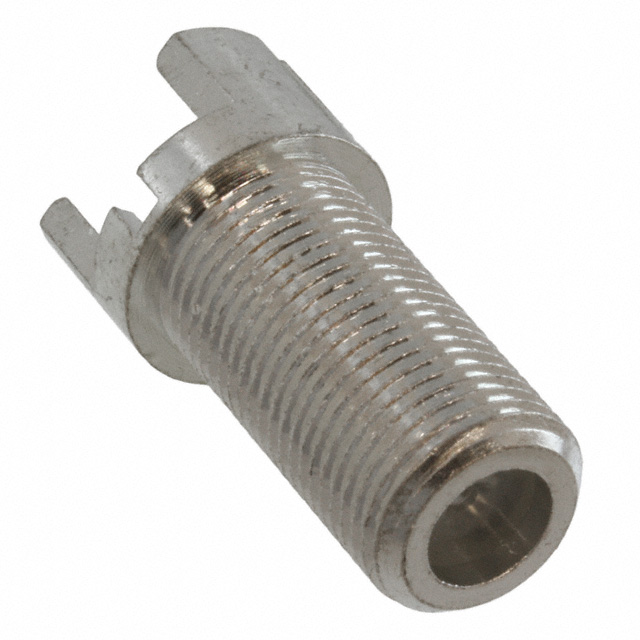

Cinch Connectivity Solutions AIM-Cambridge 25-7630
Images are for reference only
Manufacturer
Manufacturer No
25-7630
Availability
In Stock
Packaging
Bulk
Description
CONN F JACK STR 75 OHM EDGE MNT
Detailed Description
F Type Connector Jack, Female Socket 75 Ohms Board Edge, End Launch Solder
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions AIM-Cambridge
Series
-
Features
-
Includes
-
Impedance
75 Ohms
Packaging
Bulk
Body Finish
Tin
Cable Group
-
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
-
Connector Style
F Type
Frequency - Max
1 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
-
Contact Termination
Solder
Dielectric Material
Polypropylene (PP)
Operating Temperature
-
Center Contact Plating
Tin
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions AIM-Cambridge |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 75 Ohms |
| Packaging | Bulk |
| Body Finish | Tin |
| Cable Group | - |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Connector Style | F Type |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | - |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) |
| Operating Temperature | - |
| Center Contact Plating | Tin |
| Center Contact Material | Phosphor Bronze |
