Step1: Product

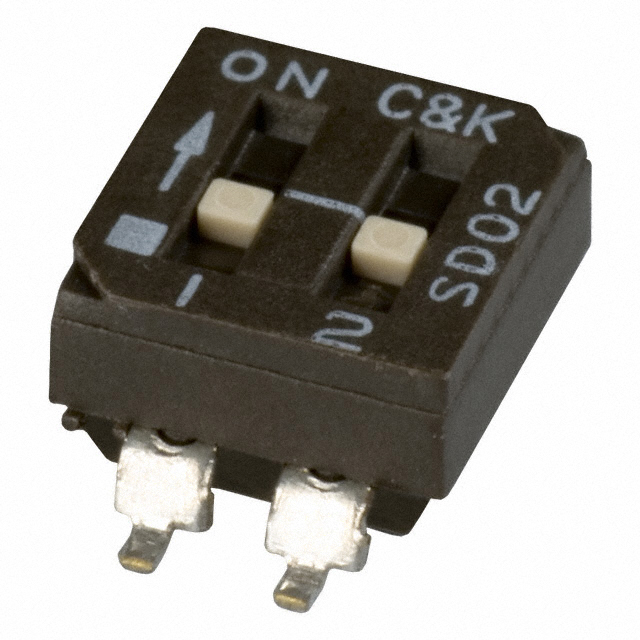

C&K SD02H1SK
Pitch
0.100" (2.54mm), Full
Length
0.258" (6.55mm)
Series
SD
Circuit
SPST
Features
Tape Seal
Washable
Yes
Packaging
Tube
Manufacturer
C&K
Actuator Type
Slide (Standard)
Body Material
Polyphthalamide (PPA)
Mounting Type
Surface Mount
Actuator Level
Raised
Contact Finish
Gold
Voltage Rating
25VDC
Electrical Life
2,000 Cycles
Mechanical Life
2,000 Cycles
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.180" (4.57mm)
Number of Positions
2
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.258" (6.55mm) |
| Series | SD |
| Circuit | SPST |
| Features | Tape Seal |
| Washable | Yes |
| Packaging | Tube |
| Manufacturer | C&K |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphthalamide (PPA) |
| Mounting Type | Surface Mount |
| Actuator Level | Raised |
| Contact Finish | Gold |
| Voltage Rating | 25VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.180" (4.57mm) |
| Number of Positions | 2 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
