Step1: Product

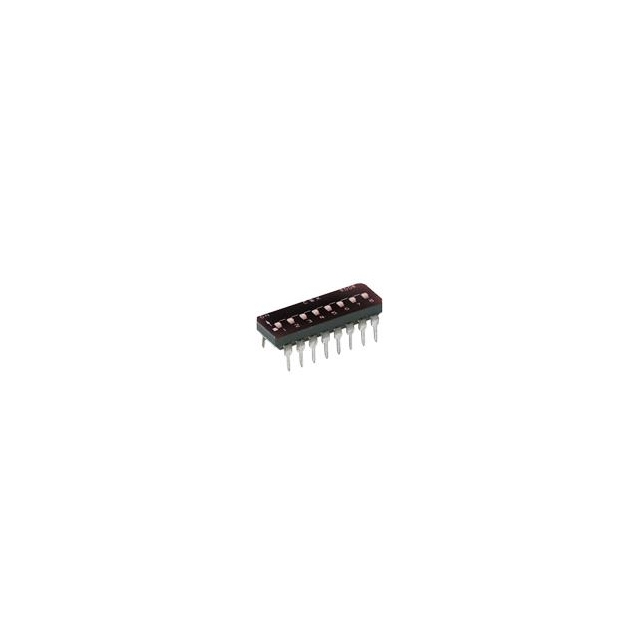

C&K SD02H0BD
Pitch
0.100" (2.54mm), Full
Length
0.258" (6.55mm)
Series
SD
Circuit
SPST
Features
-
Washable
No
Packaging
Tube
Manufacturer
C&K
Actuator Type
Slide (Standard)
Body Material
Polyphthalamide (PPA)
Mounting Type
Through Hole
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
25VDC
Electrical Life
2,000 Cycles
Mechanical Life
2,000 Cycles
Contact Material
Beryllium Copper
Termination Style
PC Pin
Height Above Board
0.168" (4.27mm)
Base Product Number
SD02H0
Number of Positions
2
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.258" (6.55mm) |
| Series | SD |
| Circuit | SPST |
| Features | - |
| Washable | No |
| Packaging | Tube |
| Manufacturer | C&K |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphthalamide (PPA) |
| Mounting Type | Through Hole |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 25VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Beryllium Copper |
| Termination Style | PC Pin |
| Height Above Board | 0.168" (4.27mm) |
| Base Product Number | SD02H0 |
| Number of Positions | 2 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
