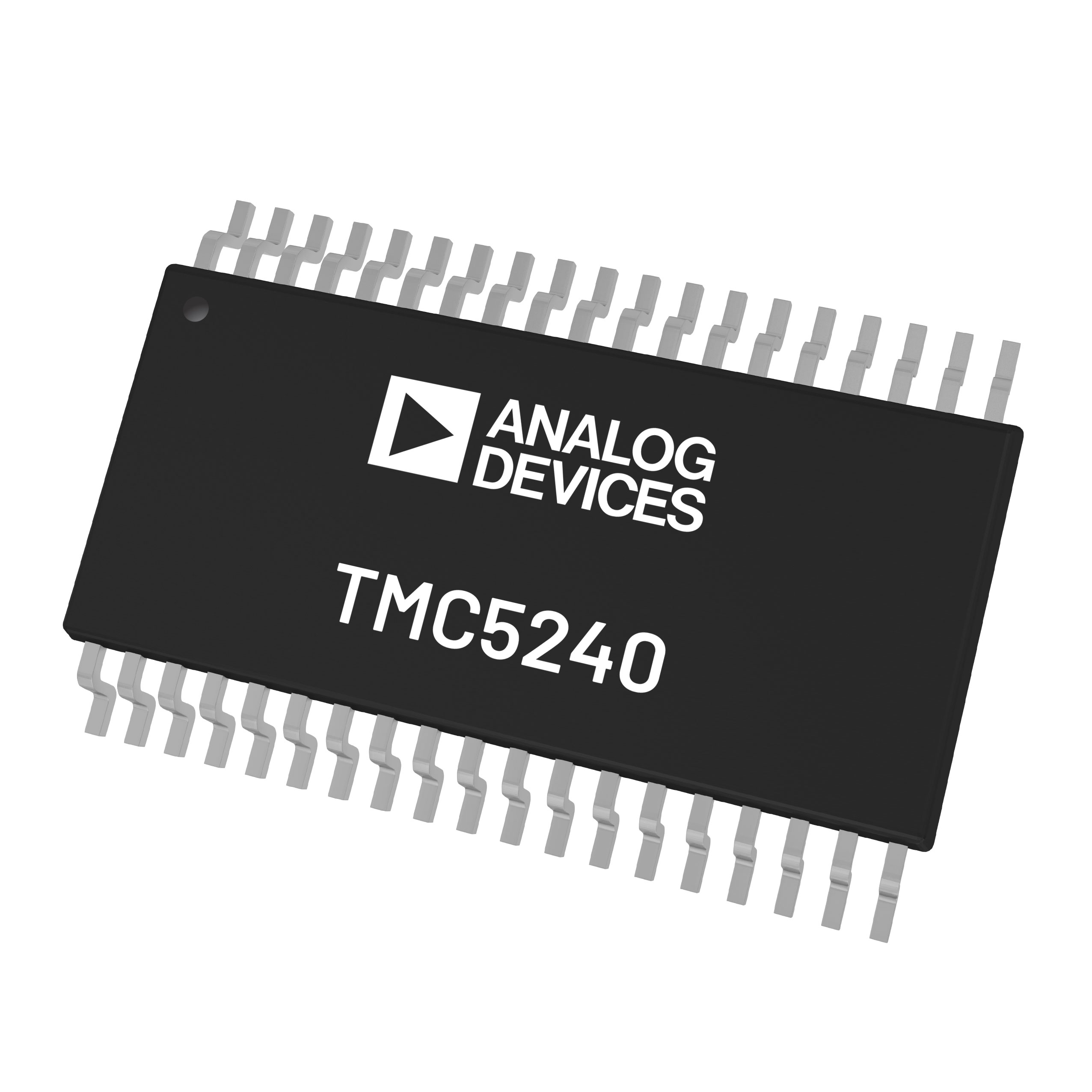

Analog Devices Inc./Maxim Integrated TMC5240AUU+
Images are for reference only
Manufacturer
Manufacturer No
TMC5240AUU+
Quantity
10
Availability
In Stock
Package
38-TFSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Tube
Description
36V 2ARMS+ SMART INTEGRATED STEP
Detailed Description
Bipolar Motor Driver Power MOSFET SPI, UART 38-TSSOP-EP
Datasheet
Payment
Delivery
Series
-
Function
Driver - Fully Integrated, Control and Power Stage
Interface
SPI, UART
Packaging
Tube
Technology
Power MOSFET
Applications
General Purpose
Manufacturer
Analog Devices Inc./Maxim Integrated
Mounting Type
Surface Mount
Package / Case
38-TFSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Load
4.5V ~ 36V
Step Resolution
1 ~ 1/256
Current - Output
2.1A
Voltage - Supply
4.5V ~ 36V
Motor Type - AC, DC
-
Motor Type - Stepper
Bipolar
Output Configuration
Half Bridge (4)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
38-TSSOP-EP
| Attribute | Value |
|---|---|
| Series | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI, UART |
| Packaging | Tube |
| Technology | Power MOSFET |
| Applications | General Purpose |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Voltage - Load | 4.5V ~ 36V |
| Step Resolution | 1 ~ 1/256 |
| Current - Output | 2.1A |
| Voltage - Supply | 4.5V ~ 36V |
| Motor Type - AC, DC | - |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (4) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 38-TSSOP-EP |
