Analog Devices Inc./Maxim Integrated TMC2226-SA-T

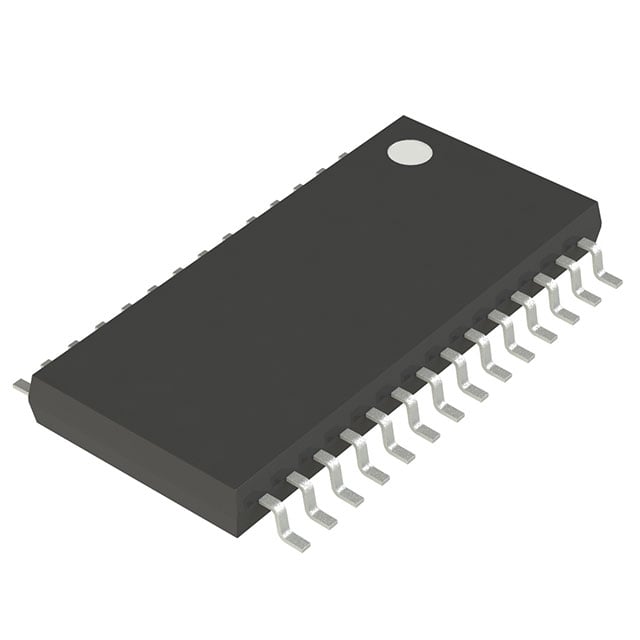

Images are for reference only
Manufacturer
Manufacturer No
TMC2226-SA-T
Quantity
868
Availability
In Stock
Package
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC MTR DRV 4.75-29V HTSSOP28
Detailed Description
Bipolar Motor Driver Power MOSFET Step/Direction, UART 28-HTSSOP
Datasheet
Payment
Delivery
Series
-
Function
Driver - Fully Integrated, Control and Power Stage
Interface
Step/Direction, UART
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Power MOSFET
Applications
General Purpose
Manufacturer
Analog Devices Inc./Maxim Integrated
Mounting Type
Surface Mount
Package / Case
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Load
4.75V ~ 29V
Step Resolution
1 ~ 1/256
Current - Output
2A
Voltage - Supply
3.3V ~ 5V
Base Product Number
TMC2226
Motor Type - AC, DC
-
Motor Type - Stepper
Bipolar
Output Configuration
Step/Direction
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
28-HTSSOP
| Attribute | Value |
|---|---|
| Series | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Step/Direction, UART |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Power MOSFET |
| Applications | General Purpose |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Voltage - Load | 4.75V ~ 29V |
| Step Resolution | 1 ~ 1/256 |
| Current - Output | 2A |
| Voltage - Supply | 3.3V ~ 5V |
| Base Product Number | TMC2226 |
| Motor Type - AC, DC | - |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Step/Direction |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 28-HTSSOP |
