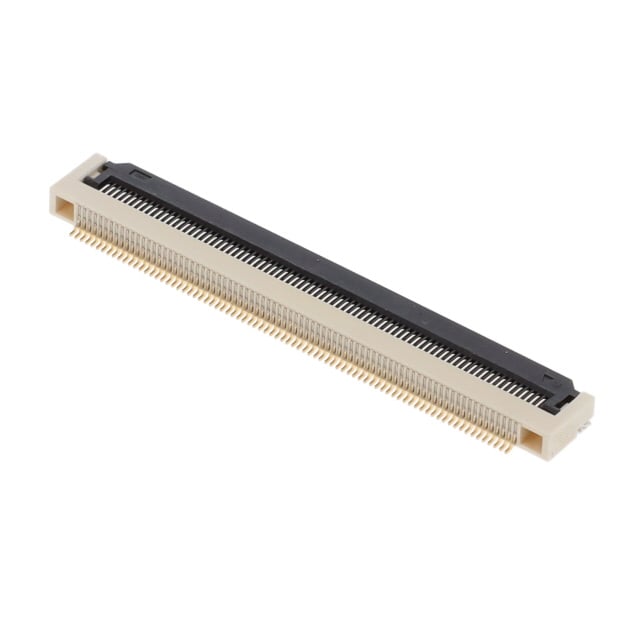

Amphenol ICC (FCI) F31L-1A7H1-11080
Images are for reference only
Manufacturer
Manufacturer No
F31L-1A7H1-11080
Quantity
202
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC BOTTOM 80POS 0.5MM R/A
Detailed Description
80 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
Aorora F31L
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Housing Color
Natural
Mating Cycles
30
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight, Tapered
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
Actuator Material
Polyamide (PA9T), Nylon 9T, Halogen Free
FFC, FCB Thickness
0.30mm, 0.33mm
Height Above Board
0.100" (2.54mm)
Base Product Number
F31L-1A7H1
Number of Positions
80
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 105°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
1.97µin (0.050µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | Aorora F31L |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Natural |
| Mating Cycles | 30 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight, Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Halogen Free |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | 0.100" (2.54mm) |
| Base Product Number | F31L-1A7H1 |
| Number of Positions | 80 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 1.97µin (0.050µm) |
| Material Flammability Rating | UL94 V-0 |
