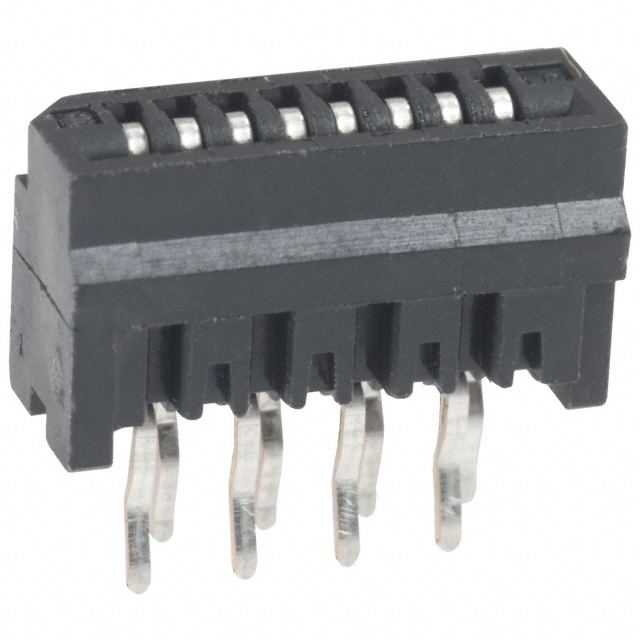

Amphenol ICC (FCI) HLW8S-2C7LF
Images are for reference only
Manufacturer
Manufacturer No
HLW8S-2C7LF
Quantity
15,750
Availability
In Stock
Packaging
Tray
Description
CONN FFC FPC VERT 8POS 1MM PCB
Detailed Description
8 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
Datasheet
Payment
Delivery
Pitch
0.039" (1.00mm)
Series
HLW-S
Features
-
Packaging
Tray
Termination
Kinked Pin
Manufacturer
Amphenol ICC (FCI)
Housing Color
Black
Mating Cycles
30
Mounting Type
Through Hole
Actuator Color
-
Cable End Type
-
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
100V
Locking Feature
-
Contact Material
Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material
-
FFC, FCB Thickness
0.33mm
Height Above Board
0.232" (5.90mm)
Base Product Number
HLW8S
Number of Positions
8
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 85°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
Contact Finish Thickness
-
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | HLW-S |
| Features | - |
| Packaging | Tray |
| Termination | Kinked Pin |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Black |
| Mating Cycles | 30 |
| Mounting Type | Through Hole |
| Actuator Color | - |
| Cable End Type | - |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 100V |
| Locking Feature | - |
| Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Material | - |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | 0.232" (5.90mm) |
| Base Product Number | HLW8S |
| Number of Positions | 8 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
