Step1: Product

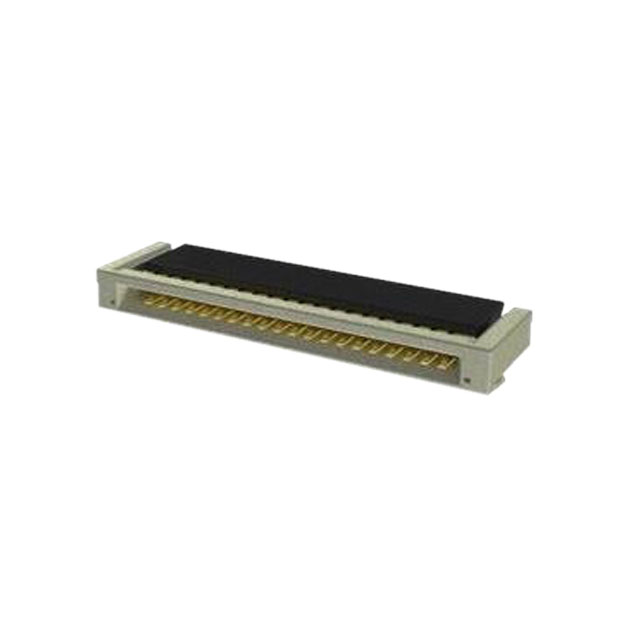

Amphenol ICC (FCI) 10051922-3010ELF
Images are for reference only
Manufacturer
Manufacturer No
10051922-3010ELF
Quantity
2
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC BOTTOM 30POS 0.5MM R/A
Detailed Description
30 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
VLL
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Housing Color
Natural
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA9T), Nylon 9T, Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.051" (1.30mm)
Base Product Number
10051922
Number of Positions
30
Current Rating (Amps)
0.5A
Operating Temperature
-55°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
2.00µin (0.051µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | VLL |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Natural |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.051" (1.30mm) |
| Base Product Number | 10051922 |
| Number of Positions | 30 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 2.00µin (0.051µm) |
| Material Flammability Rating | UL94 V-0 |
