Step1: Product

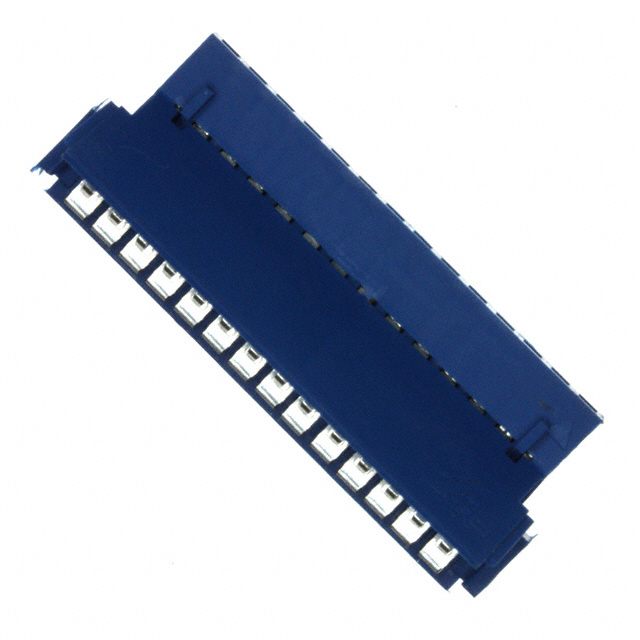

Amphenol ICC (FCI) 10022753-014LF
Images are for reference only
Manufacturer
Manufacturer No
10022753-014LF
Packaging
Tray
Description
CONN FFC FPC RCPT 14POS 2.54MM
Detailed Description
14 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm)
Series
Clincher™
Features
-
Packaging
Tray
Termination
IDC
Manufacturer
Amphenol ICC (FCI)
Housing Color
Blue
Mating Cycles
100
Mounting Type
Free Hanging (In-Line)
Actuator Color
-
Cable End Type
-
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
500V
Locking Feature
Latch Lock
Contact Material
Copper Nickel Alloy
Housing Material
Thermoplastic
Actuator Material
-
FFC, FCB Thickness
0.33mm
Height Above Board
-
Base Product Number
10022753
Number of Positions
14
Current Rating (Amps)
2A per Contact
Operating Temperature
-65°C ~ 105°C
Connector/Contact Type
Receptacle
Contact Finish Thickness
100.0µin (2.54µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Series | Clincher™ |
| Features | - |
| Packaging | Tray |
| Termination | IDC |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Blue |
| Mating Cycles | 100 |
| Mounting Type | Free Hanging (In-Line) |
| Actuator Color | - |
| Cable End Type | - |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 500V |
| Locking Feature | Latch Lock |
| Contact Material | Copper Nickel Alloy |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | - |
| Base Product Number | 10022753 |
| Number of Positions | 14 |
| Current Rating (Amps) | 2A per Contact |
| Operating Temperature | -65°C ~ 105°C |
| Connector/Contact Type | Receptacle |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Material Flammability Rating | UL94 V-0 |
