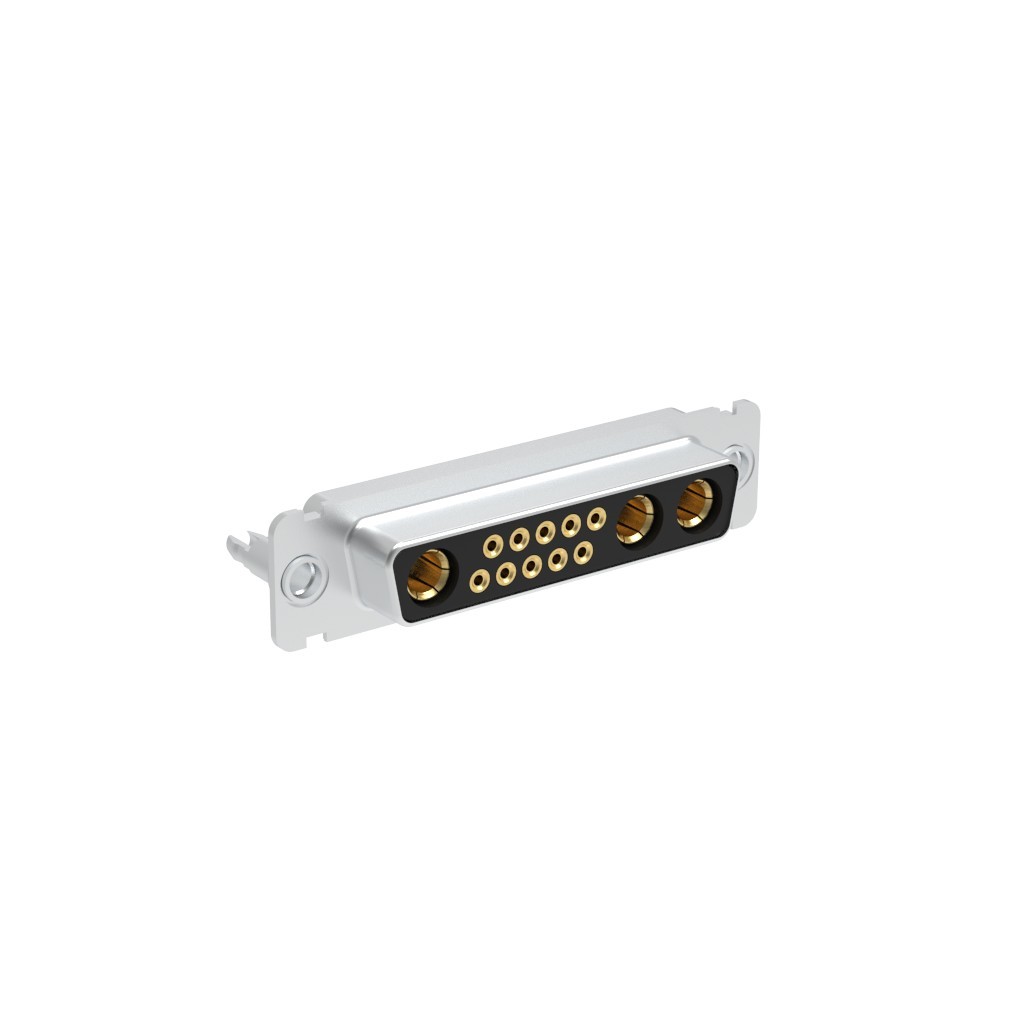

Amphenol ICC (Commercial Products) L77TWB13W3SP2SYRM54
Images are for reference only
Manufacturer
Manufacturer No
L77TWB13W3SP2SYRM54
Packaging
Tray
Description
DSUB, MACHINED HYBRID, 13W3, POW
Detailed Description
13 (10 + 3 Power) Position D-Sub, High Density Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
TW
Features
Board Lock
Packaging
Tray
Wire Gauge
-
Termination
Solder
Contact Form
Machined
Contact Type
Signal and Power
Mounting Type
Through Hole
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (4-40)
Number of Rows
2
Voltage Rating
300V
Backset Spacing
-
Connector Style
D-Sub, High Density
Contact Material
Brass, Copper Alloy
Primary Material
Metal
Ingress Protection
-
Dielectric Material
Thermoplastic, Glass Filled
Number of Positions
13 (10 + 3 Power)
Current Rating (Amps)
7.5A, 20A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
15.0µin (0.38µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B) - 13C3, 13W3
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | TW |
| Features | Board Lock |
| Packaging | Tray |
| Wire Gauge | - |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal and Power |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 300V |
| Backset Spacing | - |
| Connector Style | D-Sub, High Density |
| Contact Material | Brass, Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | - |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 13 (10 + 3 Power) |
| Current Rating (Amps) | 7.5A, 20A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 |
