Step1: Product

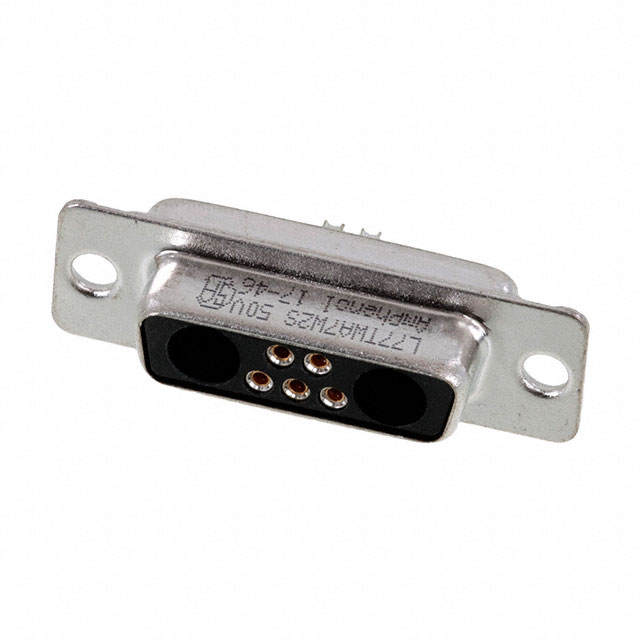

Amphenol ICC (Commercial Products) L77TWA7W2S
Images are for reference only
Manufacturer
Manufacturer No
L77TWA7W2S
Quantity
30
Availability
In Stock
Packaging
Bag
Description
CONN D-SUB RCPT 7POS PNL MNT
Detailed Description
7 (5 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
TW
Features
-
Packaging
Bag
Wire Gauge
-
Termination
Solder Cup
Contact Form
Machined
Contact Type
Signal and Coax or Power (Not Included)
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
300V
Backset Spacing
-
Connector Style
D-Sub, Combo
Contact Material
Bronze
Ingress Protection
-
Base Product Number
L77TWA7
Dielectric Material
Thermoplastic
Number of Positions
7 (5 + 2 Coax or Power)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 155°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
16.0µin (0.41µm)
Material Flammability Rating
-
Shell Size, Connector Layout
2 (DA, A) - 7W2
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | TW |
| Features | - |
| Packaging | Bag |
| Wire Gauge | - |
| Termination | Solder Cup |
| Contact Form | Machined |
| Contact Type | Signal and Coax or Power (Not Included) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 300V |
| Backset Spacing | - |
| Connector Style | D-Sub, Combo |
| Contact Material | Bronze |
| Ingress Protection | - |
| Base Product Number | L77TWA7 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 7 (5 + 2 Coax or Power) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 155°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 16.0µin (0.41µm) |
| Material Flammability Rating | - |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
