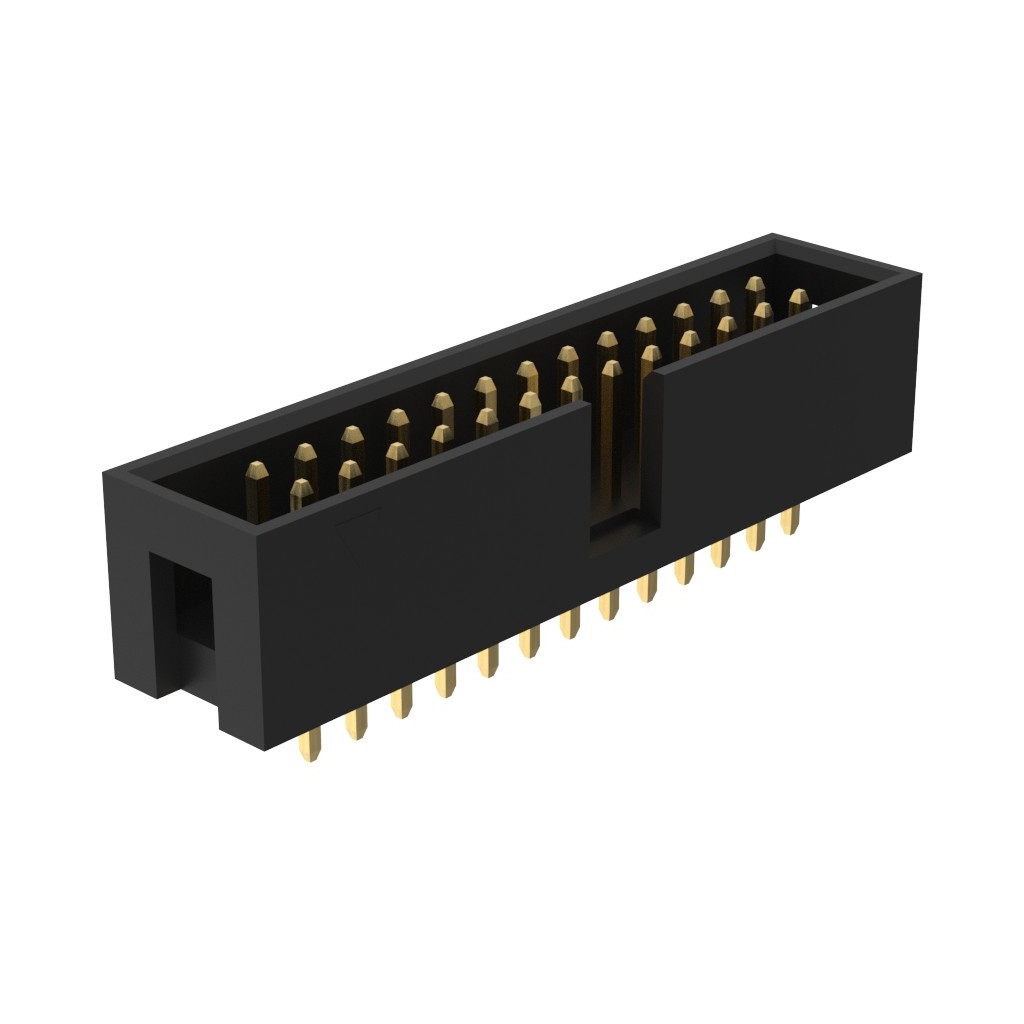

Amphenol ICC (Commercial Products) G821EU226AKM00Y
Images are for reference only
Manufacturer
Manufacturer No
G821EU226AKM00Y
Packaging
Tray
Description
BOX HEADER 2.54MM *2.54MM PITCH
Detailed Description
Connector Header Through Hole 26 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (Commercial Products)
Style
Board to Cable/Wire
Series
G821
Features
Keying Slot
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250VDC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.358" (9.10mm)
Ingress Protection
-
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
26
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
3A
Operating Temperature
-25°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Style | Board to Cable/Wire |
| Series | G821 |
| Features | Keying Slot |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250VDC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.358" (9.10mm) |
| Ingress Protection | - |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 26 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -25°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
