Step1: Product

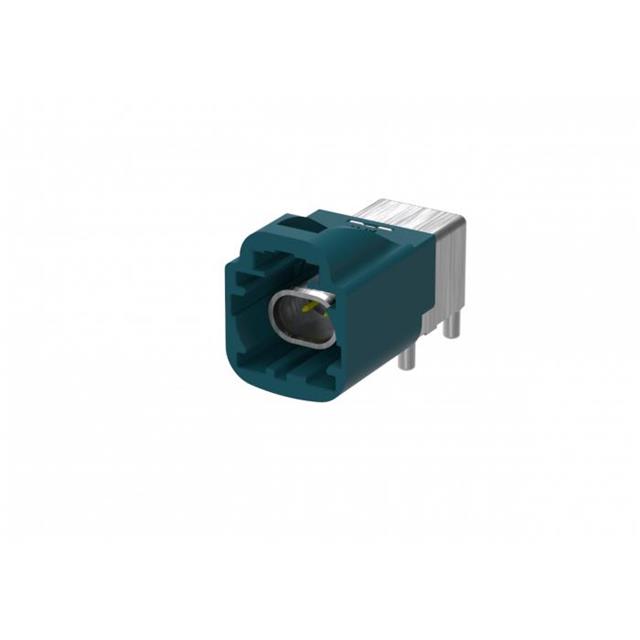

Amphenol ICC (Commercial Products) VNTBR11Z2001SR

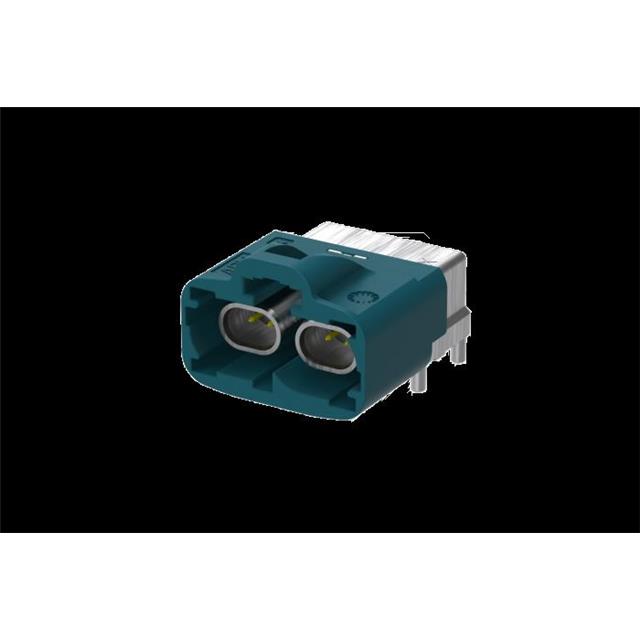

Images are for reference only
Manufacturer
Manufacturer No
VNTBR11Z2001SR
Quantity
107
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
VE-NET, 1X1, RA, UNSEAL, Z CODE
Detailed Description
Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (Commercial Products)
Style
Board to Cable/Wire
Series
Ve-Net
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
Blue
Insulation Height
0.531" (13.50mm)
Ingress Protection
-
Insulation Material
Polyamide (PA4T), Nylon 4T
Number of Positions
2
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.083" (2.10mm)
Current Rating (Amps)
-
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
5.90µin (0.150µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Style | Board to Cable/Wire |
| Series | Ve-Net |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Blue |
| Insulation Height | 0.531" (13.50mm) |
| Ingress Protection | - |
| Insulation Material | Polyamide (PA4T), Nylon 4T |
| Number of Positions | 2 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.083" (2.10mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
