Step1: Product

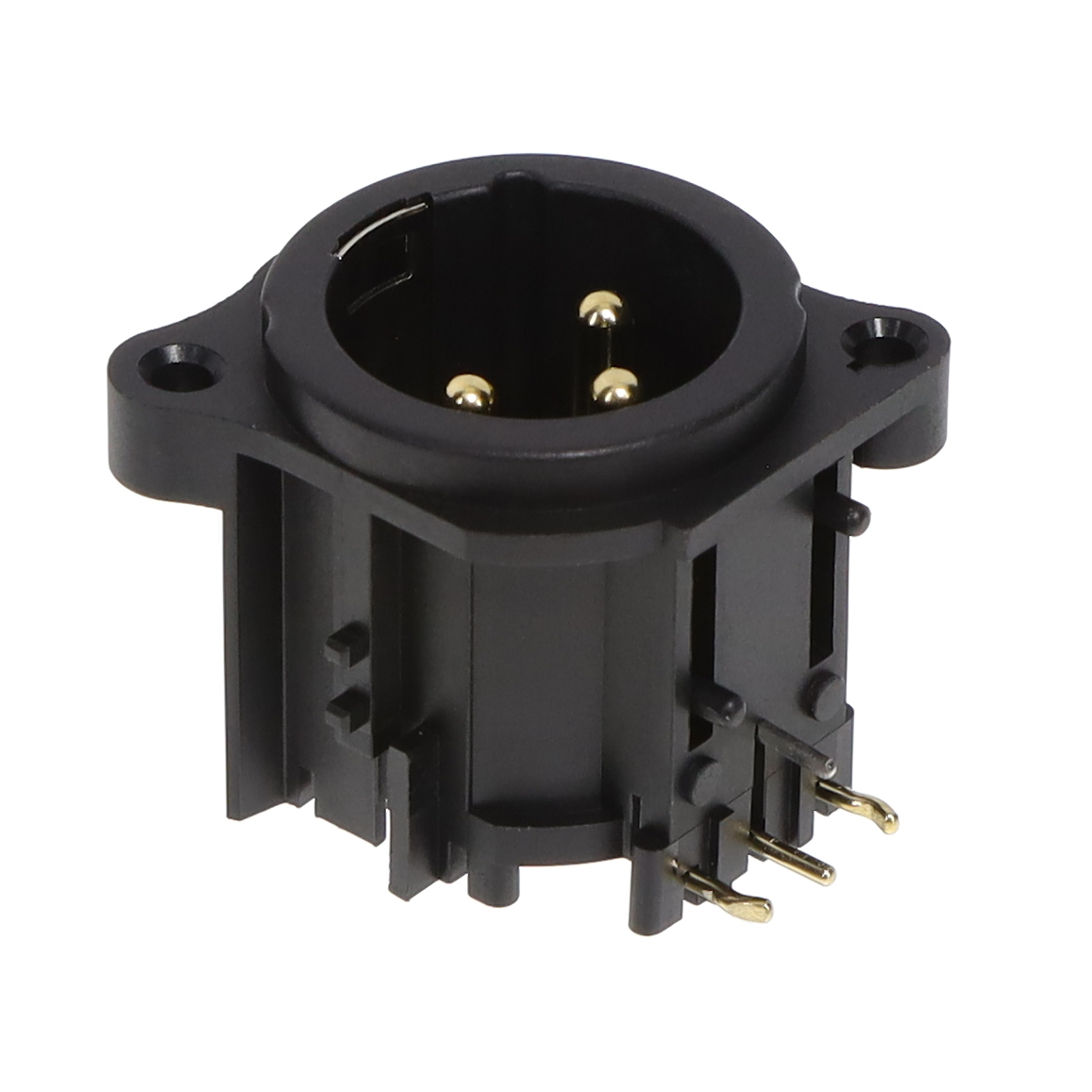

Amphenol Audio AC3MAH-AU-PRE
Images are for reference only
Manufacturer
Manufacturer No
AC3MAH-AU-PRE
Packaging
Bulk
Description
CONN RCPT MALE XLR 3P GOLD SLDR
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Solder
Datasheet
Payment
Delivery
Mfr
Amphenol Audio
Color
Black
Series
XLRSeries™ AC
Features
Board Guide
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Termination
Solder
Applications
Audio
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle, Male Pins
Fastening Type
Push-Pull
Shell Material
Thermoplastic
Voltage Rating
-
Insert Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size, MIL
-
Contact Material
Brass
Mounting Feature
Flange
Primary Material
Plastic
Ingress Protection
IP40
Base Product Number
AC3M
Number of Positions
3
Shell Size - Insert
XLR
Current Rating (Amps)
6A
Operating Temperature
-25°C ~ 75°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol Audio |
| Color | Black |
| Series | XLRSeries™ AC |
| Features | Board Guide |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Push-Pull |
| Shell Material | Thermoplastic |
| Voltage Rating | - |
| Insert Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Ingress Protection | IP40 |
| Base Product Number | AC3M |
| Number of Positions | 3 |
| Shell Size - Insert | XLR |
| Current Rating (Amps) | 6A |
| Operating Temperature | -25°C ~ 75°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
