Step1: Product

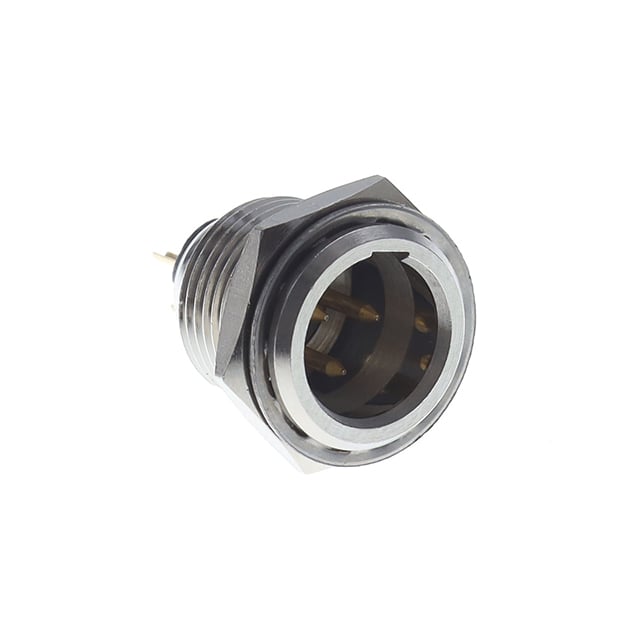

Amphenol Audio AG3MCC
Images are for reference only
Manufacturer
Manufacturer No
AG3MCC
Quantity
25
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT MALE MINI XLR 3POS SLD
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol Audio
Color
Silver
Series
mini XLR G Type™
Features
-
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Termination
Solder Cup
Applications
Audio
Shell Finish
Nickel
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Latch Holder
Shell Material
Brass
Voltage Rating
-
Insert Material
Polyphenylene Sulfide (PPS)
Shell Size, MIL
-
Contact Material
Brass
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Metal
Ingress Protection
IP40
Base Product Number
AG3
Number of Positions
3
Shell Size - Insert
Mini XLR
Current Rating (Amps)
5A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | Amphenol Audio |
| Color | Silver |
| Series | mini XLR G Type™ |
| Features | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Audio |
| Shell Finish | Nickel |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Latch Holder |
| Shell Material | Brass |
| Voltage Rating | - |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP40 |
| Base Product Number | AG3 |
| Number of Positions | 3 |
| Shell Size - Insert | Mini XLR |
| Current Rating (Amps) | 5A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 HB |
