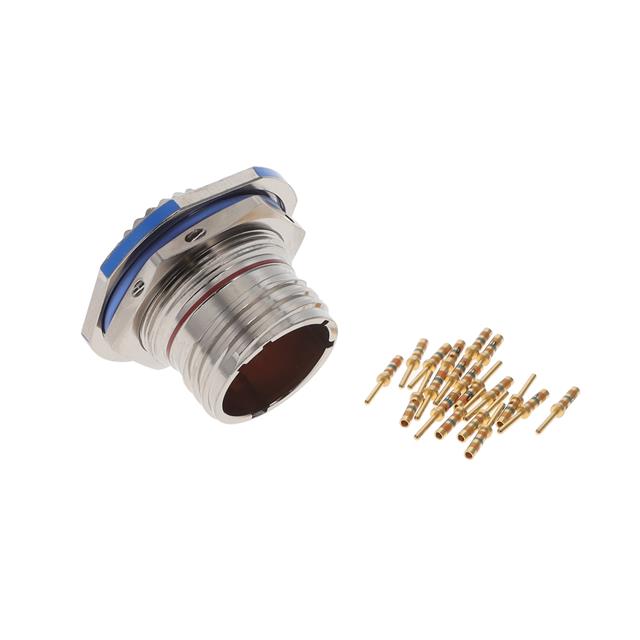

Amphenol Aerospace Operations TVS07DS-15-19P
Images are for reference only
Manufacturer
Manufacturer No
TVS07DS-15-19P
Availability
In Stock
Packaging
Bag
Description
JAM NUT RECEPTACLE, AP-93 FINISH
Detailed Description
19 Position Circular Connector Receptacle, Male Pins Crimp
Datasheet
Payment
Delivery
Mfr
Amphenol Aerospace Operations
Color
-
Grade
-
Series
Tri-Start™ TV
Features
-
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Termination
Crimp
Applications
Aviation, Marine, Military
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount
Qualification
MIL-DTL-38999 Series III
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
-
Voltage Rating
600VAC, 850VDC
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
-
Ingress Protection
-
Number of Positions
19
Shell Size - Insert
15-19
Current Rating (Amps)
7.5A
Operating Temperature
-
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Color | - |
| Grade | - |
| Series | Tri-Start™ TV |
| Features | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Aviation, Marine, Military |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-38999 Series III |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | - |
| Voltage Rating | 600VAC, 850VDC |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | - |
| Ingress Protection | - |
| Number of Positions | 19 |
| Shell Size - Insert | 15-19 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | - |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
