Step1: Product

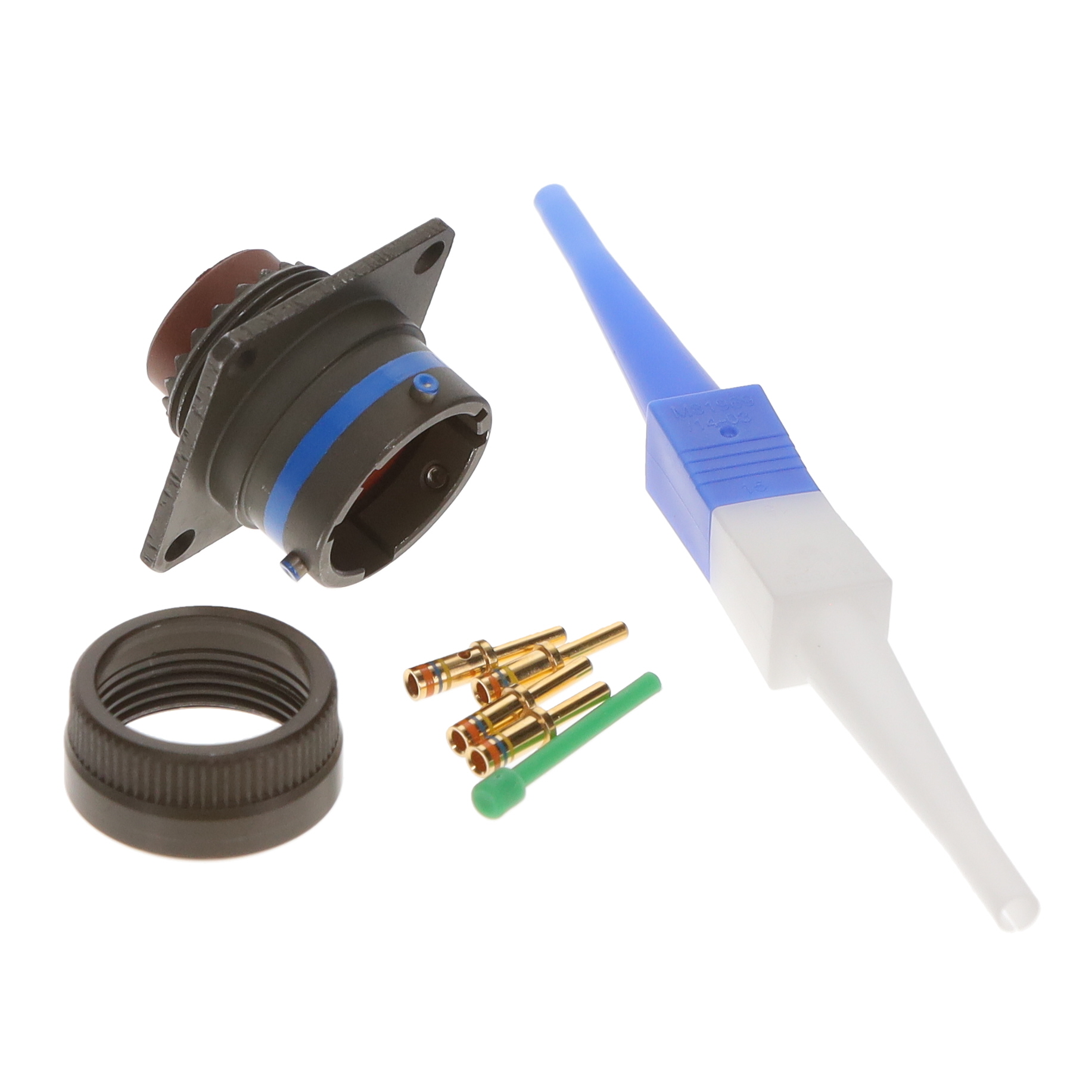

Amphenol Aerospace Operations MS27497E12B3P
Images are for reference only
Manufacturer
Manufacturer No
MS27497E12B3P
Quantity
1
Availability
In Stock
Packaging
Bag
Description
RECEPT
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Crimp
Datasheet
Payment
Delivery
Mfr
Amphenol Aerospace Operations
Color
Olive Drab
Grade
Military
Series
JT
Features
-
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Termination
Crimp
Applications
Aviation, Marine, Military
Shell Finish
Olive Drab Cadmium over Nickel
Cable Opening
-
Mounting Type
Panel Mount
Qualification
MIL-DTL-38999 Series II
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
-
Insert Material
Plastic
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
3
Shell Size - Insert
12-3
Current Rating (Amps)
-
Operating Temperature
-65°C ~ 175°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Color | Olive Drab |
| Grade | Military |
| Series | JT |
| Features | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Aviation, Marine, Military |
| Shell Finish | Olive Drab Cadmium over Nickel |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-38999 Series II |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | - |
| Insert Material | Plastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 3 |
| Shell Size - Insert | 12-3 |
| Current Rating (Amps) | - |
| Operating Temperature | -65°C ~ 175°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
