Step1: Product

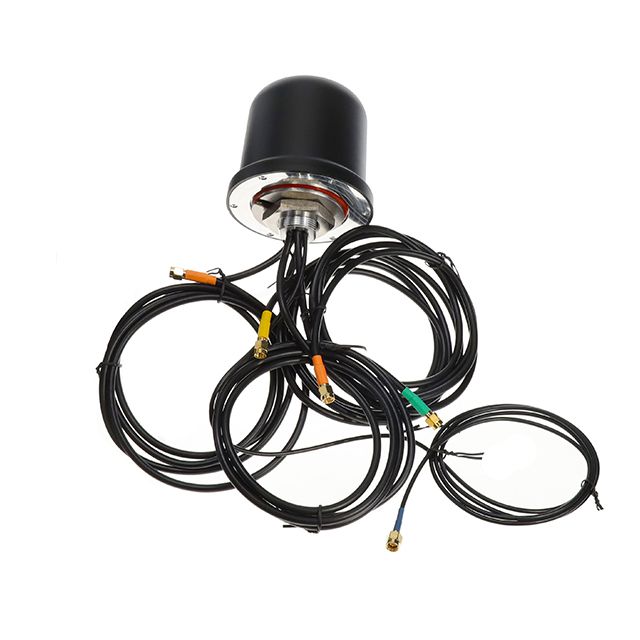

Advantech Corporation BB-2J7050BGFA-150
Images are for reference only
Manufacturer
Manufacturer No
BB-2J7050BGFA-150
Packaging
Bulk
Description
ANT 5IN1 LTE MIMO,WIFI MIMO,GPS,
Detailed Description
RF ANTENNA 2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, ISM, LTE, QZSS, Wi-Fi Dome SMA Male, RP-SMA Screw Mount
Payment
Delivery
Gain
3dBi, 28dBi, 28dBi, 4.2dBi, 5.6dBi, 4dBi, 5.5dBi
VSWR
1.5, 1.6, 1.7, 1.9, 2.1
Series
-
Features
Cable - 1.5m
Packaging
Bulk
Power - Max
25 W
Return Loss
-16.5dB, -15.6dB, -14dB, -13.6dB, -11dB, -10.4dB
Termination
SMA Male, RP-SMA
Antenna Type
Dome
Applications
2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, ISM, LTE, QZSS, Wi-Fi
Height (Max)
3.543" (90.00mm)
Manufacturer
Advantech Corporation
Mounting Type
Screw Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz, 4.92GHz ~ 5.25GHz
Number of Bands
7
Ingress Protection
IP67, IP69
RF Family/Standard
Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band)
829MHz, 1.575GHz, 1.604GHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 28dBi, 28dBi, 4.2dBi, 5.6dBi, 4dBi, 5.5dBi |
| VSWR | 1.5, 1.6, 1.7, 1.9, 2.1 |
| Series | - |
| Features | Cable - 1.5m |
| Packaging | Bulk |
| Power - Max | 25 W |
| Return Loss | -16.5dB, -15.6dB, -14dB, -13.6dB, -11dB, -10.4dB |
| Termination | SMA Male, RP-SMA |
| Antenna Type | Dome |
| Applications | 2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, ISM, LTE, QZSS, Wi-Fi |
| Height (Max) | 3.543" (90.00mm) |
| Manufacturer | Advantech Corporation |
| Mounting Type | Screw Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz, 4.92GHz ~ 5.25GHz |
| Number of Bands | 7 |
| Ingress Protection | IP67, IP69 |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency (Center/Band) | 829MHz, 1.575GHz, 1.604GHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz |
