Step1: Product

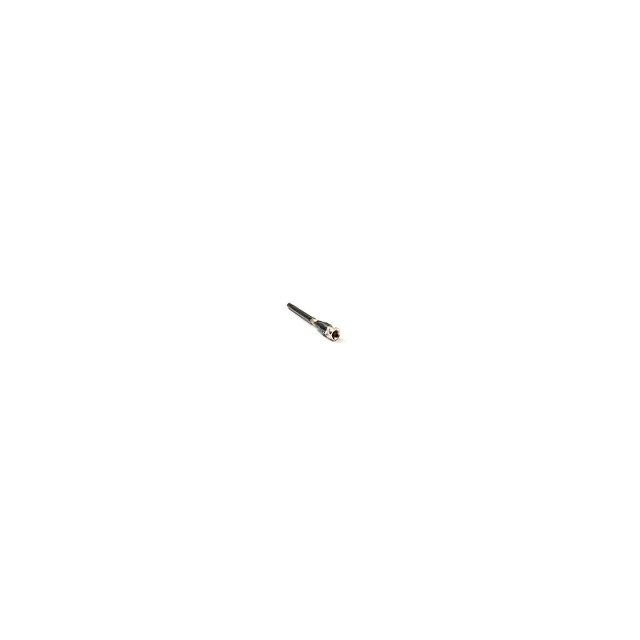

Advantech Corporation BB-TG.09.0113
Images are for reference only
Manufacturer
Manufacturer No
BB-TG.09.0113
Availability
In Stock
Packaging
Bulk
Description
ANT LTE/UMTS/GSM, STICK 1DB, SMA
Detailed Description
RF ANTENNA 2G, 3G, 4G, CDMA, GSM, HSPA, LTE, UMTS Whip, Straight SMA Male Connector Mount
Datasheet
Payment
Delivery
Gain
-3dBi, -2.6dBi, -3dBi, 0.9dBi, 0.9dBi, 0.9dBi, -1.3dBi, 1.1dBi, 1.8dBi, 3.1dBi
VSWR
-
Series
-
Features
-
Packaging
Bulk
Power - Max
10 W
Return Loss
-
Termination
SMA Male
Antenna Type
Whip, Straight
Applications
2G, 3G, 4G, CDMA, GSM, HSPA, LTE, UMTS
Height (Max)
2.835" (72.00mm)
Manufacturer
Advantech Corporation
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
703MHz ~ 803MHz, 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.71GHz ~ 1.99GHz, 1.85GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz
Number of Bands
10
Ingress Protection
-
RF Family/Standard
Cellular
Frequency (Center/Band)
753MHz, 860MHz, 920MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.35GHz, 2.59GHz, 3.5GHz, 3.7GHz
| Attribute | Value |
|---|---|
| Gain | -3dBi, -2.6dBi, -3dBi, 0.9dBi, 0.9dBi, 0.9dBi, -1.3dBi, 1.1dBi, 1.8dBi, 3.1dBi |
| VSWR | - |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Power - Max | 10 W |
| Return Loss | - |
| Termination | SMA Male |
| Antenna Type | Whip, Straight |
| Applications | 2G, 3G, 4G, CDMA, GSM, HSPA, LTE, UMTS |
| Height (Max) | 2.835" (72.00mm) |
| Manufacturer | Advantech Corporation |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 703MHz ~ 803MHz, 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.71GHz ~ 1.99GHz, 1.85GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz |
| Number of Bands | 10 |
| Ingress Protection | - |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 753MHz, 860MHz, 920MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.35GHz, 2.59GHz, 3.5GHz, 3.7GHz |
