Step1: Product

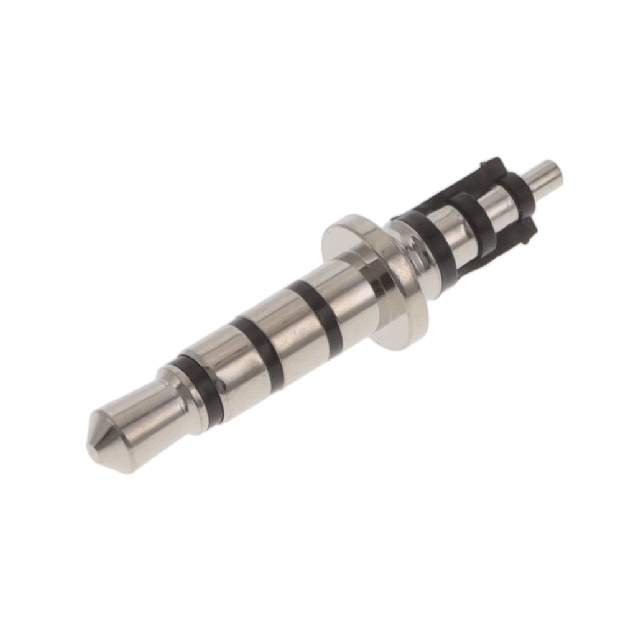

Adam Tech ASP-3.5-S3-24.2
Images are for reference only
Manufacturer
Manufacturer No
ASP-3.5-S3-24.2
Availability
In Stock
Packaging
Bag
Description
3.5MM AUDIO PLUG
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
Payment
Delivery
Mfr
Adam Tech
Gender
Male
Series
ASP
Features
-
Includes
-
Packaging
Bag
Shielding
Unshielded
Body Color
-
Termination
Solder
Thread Size
-
Signal Lines
Stereo (4 Conductor, TRRS)
Body Material
-
Cable Opening
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Phone Plug
Actual Diameter
-
Panel Hole Size
-
Voltage - Rated
30VDC
Contact Material
Copper
Housing Material
-
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Base Product Number
ASP-3.5-S
Mating Length/Depth
0.551" (14.00mm)
Current Rating (Amps)
500 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
-
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Adam Tech |
| Gender | Male |
| Series | ASP |
| Features | - |
| Includes | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | - |
| Termination | Solder |
| Thread Size | - |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Body Material | - |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Phone Plug |
| Actual Diameter | - |
| Panel Hole Size | - |
| Voltage - Rated | 30VDC |
| Contact Material | Copper |
| Housing Material | - |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | ASP-3.5-S |
| Mating Length/Depth | 0.551" (14.00mm) |
| Current Rating (Amps) | 500 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
