Step1: Product

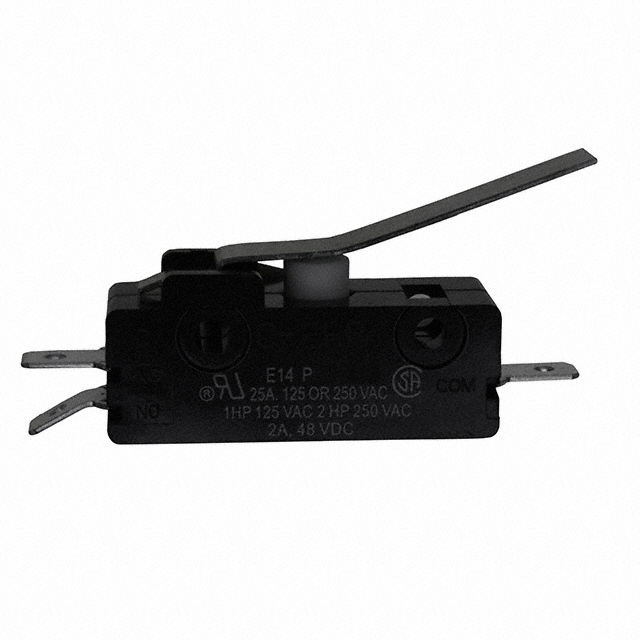

ZF Electronics E14-00H
Images are for reference only
Manufacturer
Manufacturer No
E14-00H
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 25A 125V
Detailed Description
Switch SPDT Chassis Mount
Datasheet
Payment
Delivery
Series
E
Circuit
SPDT
Features
-
Packaging
Bulk
Pretravel
0.310" (7.9mm)
Overtravel
0.105" (2.67mm)
Manufacturer
ZF Electronics
Actuator Type
Lever, Straight
Mounting Type
Chassis Mount
Release Force
-
Electrical Life
6,000 Cycles
Mechanical Life
-
Operating Force
285gf
Switch Function
On-Mom
Termination Style
Quick Connect - 0.250" (6.3mm)
Ingress Protection
-
Operating Position
0.468" (11.9mm)
Differential Travel
0.050" (1.3mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
48 V
Current Rating (Amps)
25A (AC), 2A (DC)
Operating Temperature
-40°C ~ 105°C
| Attribute | Value |
|---|---|
| Series | E |
| Circuit | SPDT |
| Features | - |
| Packaging | Bulk |
| Pretravel | 0.310" (7.9mm) |
| Overtravel | 0.105" (2.67mm) |
| Manufacturer | ZF Electronics |
| Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount |
| Release Force | - |
| Electrical Life | 6,000 Cycles |
| Mechanical Life | - |
| Operating Force | 285gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | - |
| Operating Position | 0.468" (11.9mm) |
| Differential Travel | 0.050" (1.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
| Current Rating (Amps) | 25A (AC), 2A (DC) |
| Operating Temperature | -40°C ~ 105°C |
