Step1: Product
ZenithTek Inc. ZBWM201610C22R2MS

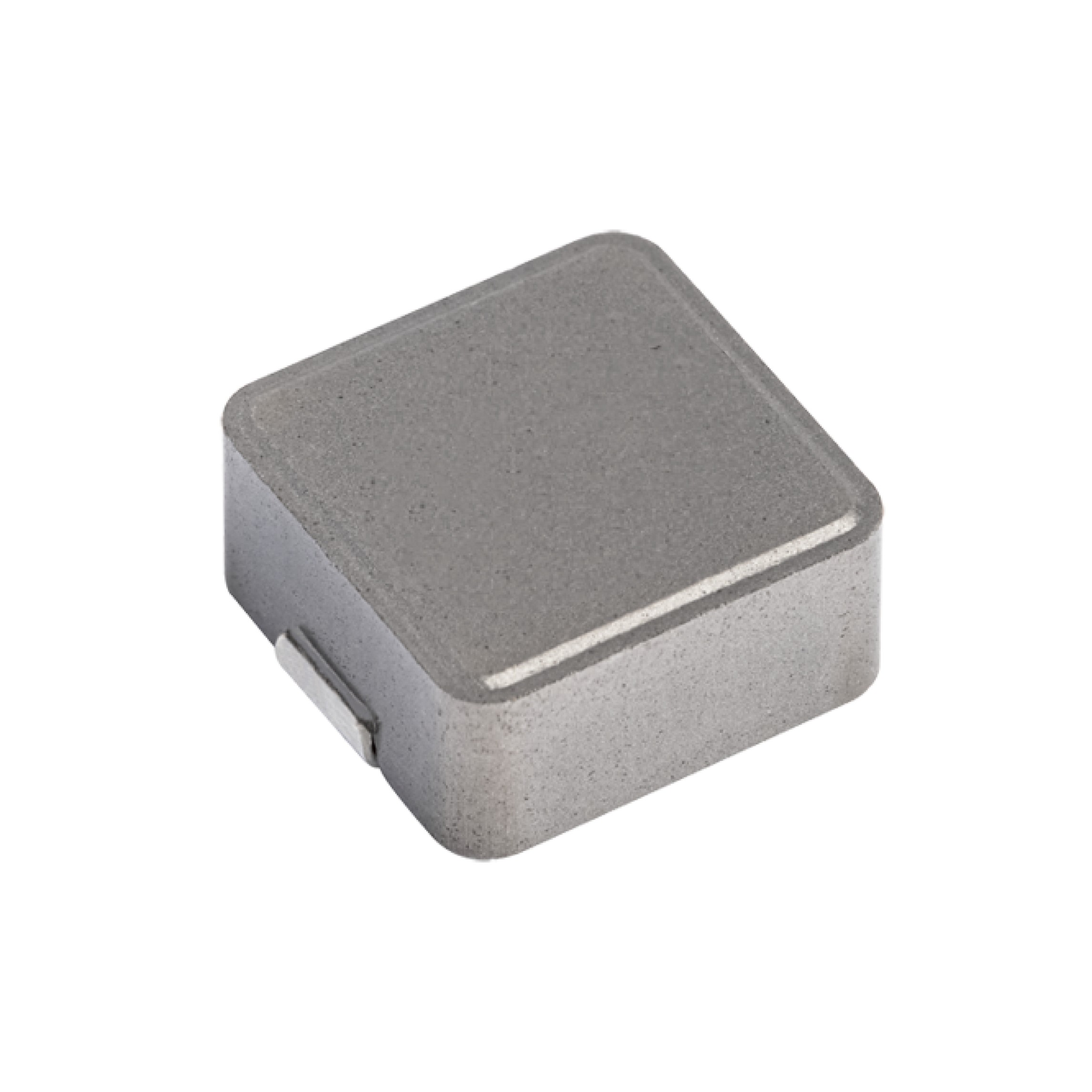

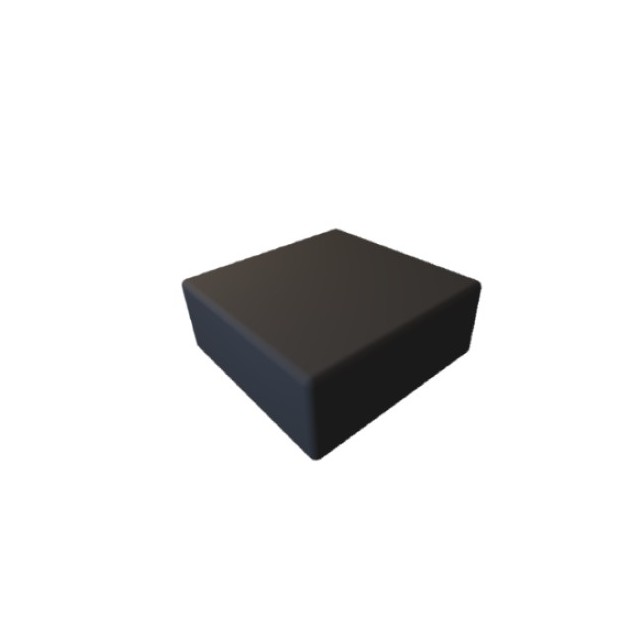

Images are for reference only
Manufacturer
Manufacturer No
ZBWM201610C22R2MS
Package
0806 (2016 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 2.2UH 2.5A 120 MOHM
Detailed Description
2.2 µH Shielded Molded Inductor 2.5 A 120mOhm 0806 (2016 Metric) Molded Inductors, Molding Power Choke
Datasheet
Payment
Delivery
Mfr
ZenithTek Inc.
Type
Molded
Series
201610C2
Ratings
-
Features
Molded Inductors, Molding Power Choke
Q @ Freq
-
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±20%
Inductance
2.2 µH
Mounting Type
Surface Mount
Package / Case
0806 (2016 Metric)
Material - Core
-
Size / Dimension
0.079" L x 0.063" W (2.00mm x 1.60mm)
DC Resistance (DCR)
120mOhm
Current Rating (Amps)
2.5 A
Height - Seated (Max)
0.039" (1.00mm)
Operating Temperature
-55°C ~ 125°C
Supplier Device Package
2016
Frequency - Self Resonant
-
Current - Saturation (Isat)
3A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | ZenithTek Inc. |
| Type | Molded |
| Series | 201610C2 |
| Ratings | - |
| Features | Molded Inductors, Molding Power Choke |
| Q @ Freq | - |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 2.2 µH |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Material - Core | - |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| DC Resistance (DCR) | 120mOhm |
| Current Rating (Amps) | 2.5 A |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 2016 |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | 3A |
| Inductance Frequency - Test | 100 kHz |
