Step1: Product

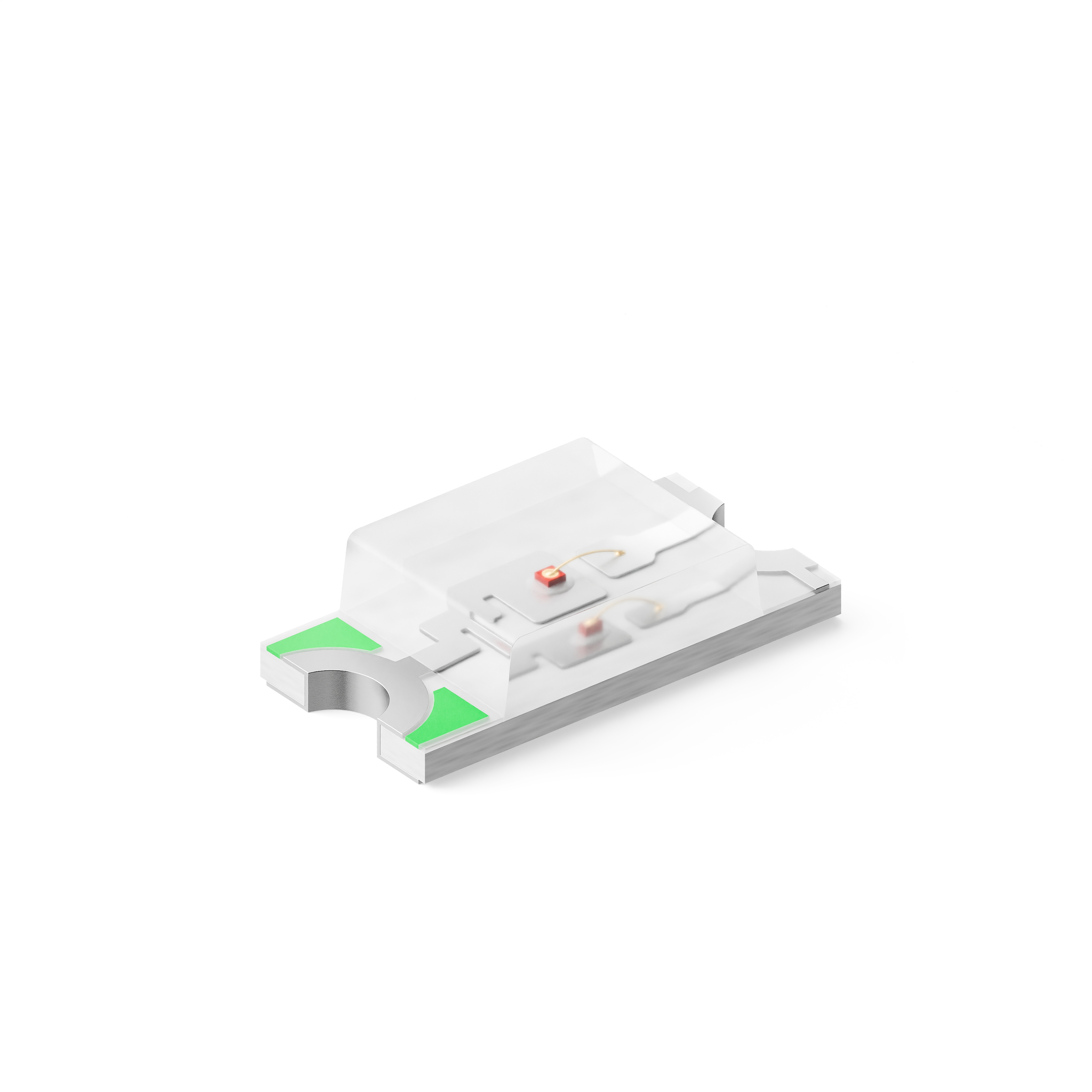

XINGLIGHT XL-3216UYC-FB
Images are for reference only
Manufacturer
Manufacturer No
XL-3216UYC-FB
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR)
Description
CHIP LED 1206 YELLOW SMD
Detailed Description
Yellow 590nm LED Indication - Discrete 2.1V 1206 (3216 Metric)
Datasheet
Payment
Delivery
Mfr
XINGLIGHT
Color
Yellow
Grade
-
Series
1206
Features
-
Lens Size
2.00mm x 1.50mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Height (Max)
1.05mm
Configuration
Independent
Mounting Type
Surface Mount
Qualification
-
Viewing Angle
120°
Current - Test
20mA
Package / Case
1206 (3216 Metric)
Size / Dimension
3.20mm L x 1.50mm W
Lens Transparency
Clear
Wavelength - Peak
588nm
Millicandela Rating
140mcd
Wavelength - Dominant
590nm
Supplier Device Package
1206
Voltage - Forward (Vf) (Typ)
2.1V
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Yellow |
| Grade | - |
| Series | 1206 |
| Features | - |
| Lens Size | 2.00mm x 1.50mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 1.05mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Qualification | - |
| Viewing Angle | 120° |
| Current - Test | 20mA |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 588nm |
| Millicandela Rating | 140mcd |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 1206 |
| Voltage - Forward (Vf) (Typ) | 2.1V |
