Step1: Product

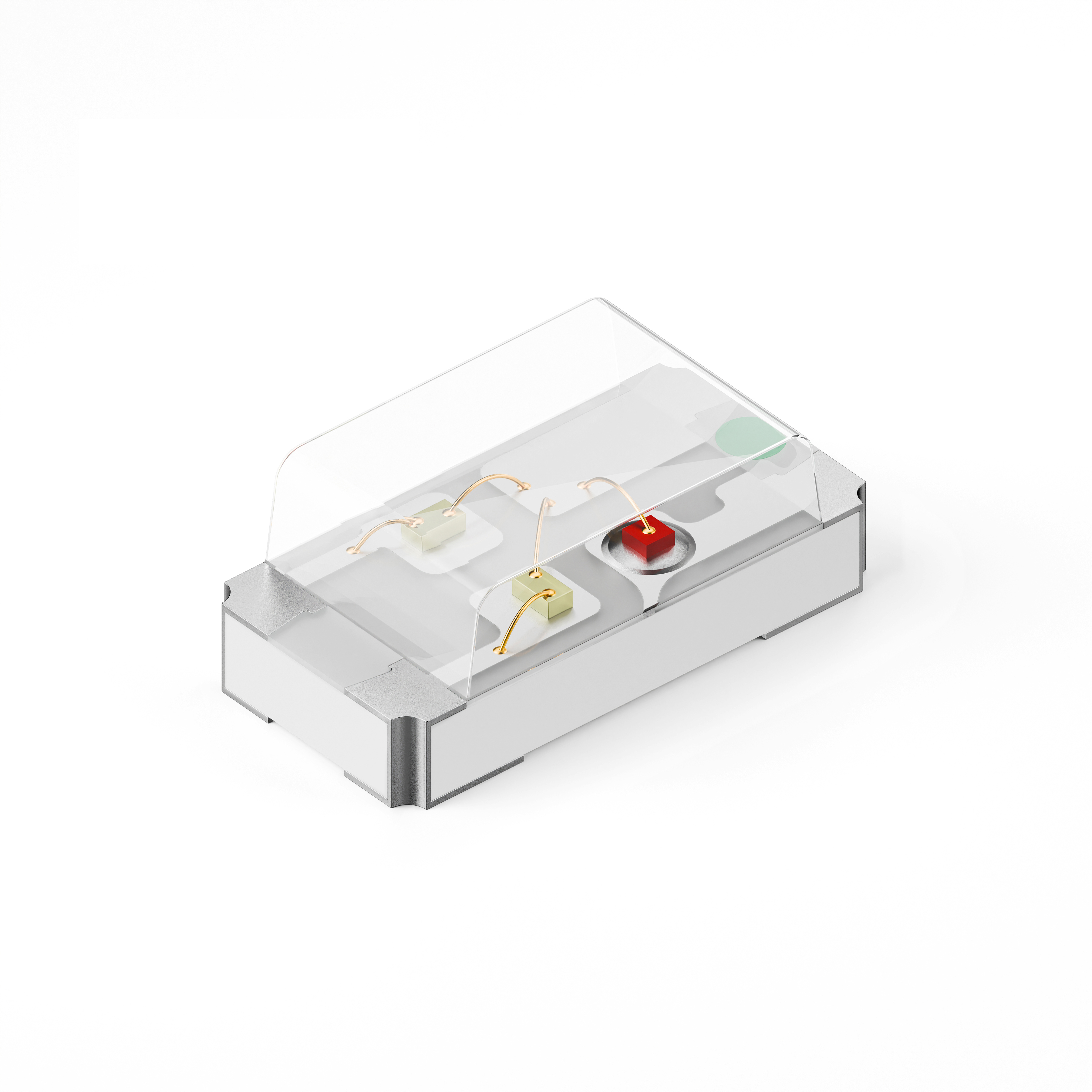

XINGLIGHT XL-1608RGBC

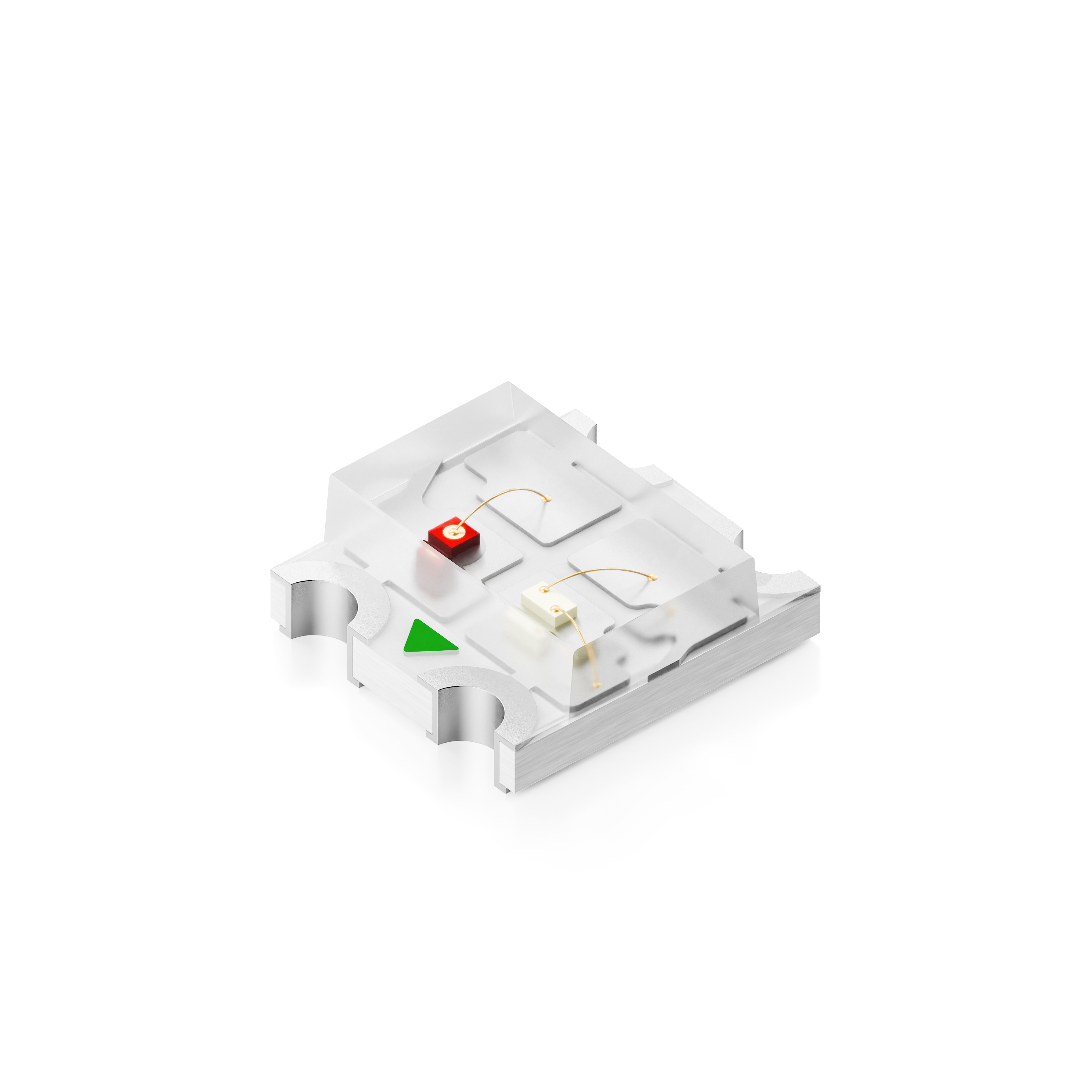

Images are for reference only
Manufacturer
Manufacturer No
XL-1608RGBC
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR)
Description
CHIP LED RGB 0603 SMD
Detailed Description
Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3.1V Blue 0603 (1608 Metric)
Datasheet
Payment
Delivery
Mfr
XINGLIGHT
Color
Red, Green, Blue (RGB)
Grade
-
Series
0603
Features
-
Lens Size
1.17mm x 0.80mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Height (Max)
0.85mm
Configuration
Common Anode
Mounting Type
Surface Mount
Qualification
-
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.85mm W
Lens Transparency
Clear
Wavelength - Peak
630nm Red, 530nm Green, 470nm Blue
Millicandela Rating
150mcd Red, 550mcd Green, 180mcd Blue
Wavelength - Dominant
625nm Red, 525nm Green, 470nm Blue
Supplier Device Package
-
Voltage - Forward (Vf) (Typ)
2.1V Red, 3.1V Green, 3.1V Blue
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Red, Green, Blue (RGB) |
| Grade | - |
| Series | 0603 |
| Features | - |
| Lens Size | 1.17mm x 0.80mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 0.85mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount |
| Qualification | - |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.85mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 630nm Red, 530nm Green, 470nm Blue |
| Millicandela Rating | 150mcd Red, 550mcd Green, 180mcd Blue |
| Wavelength - Dominant | 625nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | - |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3.1V Blue |
